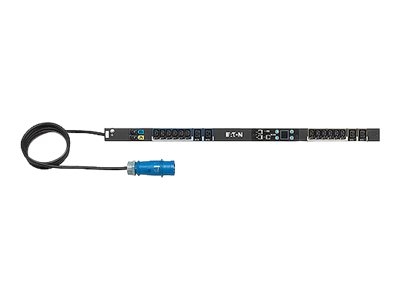

Printers & POSEaton ePDU Metered - power distribution unit
SKU EMIB05
| Product Description: | Eaton ePDU Metered - power distribution unit |
| Device Type: | Power distribution unit - rack-mountable |
| Rack Size: | 0U |
| Input Voltage: | AC 100-240 V |
| Input Connectors: | 1 x power IEC 60309 |
| Output connectors: | 20 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 |
| Networking: | Ethernet |
- Specifications
- Description
| General | |
| Device Type: | Power distribution unit - rack-mountable |
| Height (Rack Units): | 0U |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Input Connectors: | 1 x power IEC 60309 |
| Power Output Connectors Details: | 20 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 |
| Max Electric Current: | 32 A |
| Networking | |
| Remote Management Interface: | Ethernet |
| Expansion / Connectivity | |
| Interfaces: | 1 x management (Ethernet) |
| Miscellaneous | |
| Features: | Temperature sensor, rugged, low-profile, LED display, current meter |
New ePDU G3 Metered Input models feature best in class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
- Easy-read digital ammeter can automatically scroll through up to 8 circuits and can be seen through cabinet doors
- Up to 3 types of socket available in one ePDU
- High quality sockets ensure maximum reliability
- Isolation mounting expands cabinet grounding options
- Installation flexibility - have confidence that the strip can be adapted to suit any on-site rack configuration
- Tough yet attractive aluminum body with polycarbonate end caps for the ultimate in style and strength
The technical details come from 3rd party. edgemo is not responsible for any errors.
