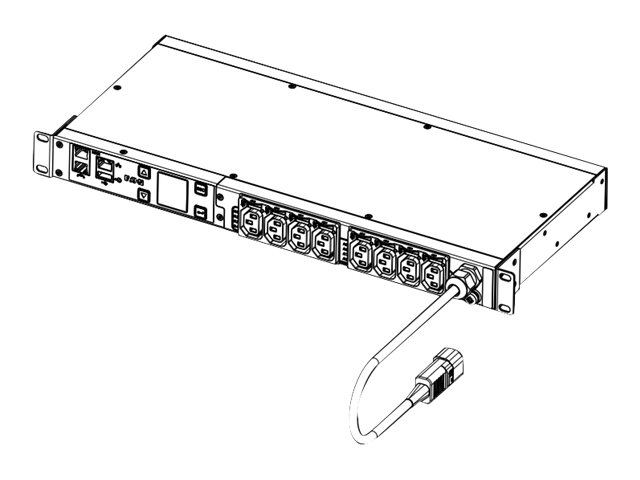

Printers & POSEaton ePDU G3 Metered Input - power distribution unit
SKU EMIH02
| Product Description: | Eaton ePDU G3 Metered Input - power distribution unit |
| Device Type: | Power distribution unit - rack-mountable |
| Cord Length: | 3 m |
| Rack Size: | 1U |
| Input Wiring: | 1-phase |
| Input Voltage: | AC 230 V |
| Input Connectors: | 1 x power IEC 60320 C14 |
- Specifications
- Description
| General | |
| Device Type: | Power distribution unit - rack-mountable |
| Height (Rack Units): | 1U |
| Cord Length: | 3 m |
| Power Device | |
| Input Voltage: | AC 230 V |
| Input Wiring: | 1-phase |
| Frequency Required: | 50 Hz |
| Input Connectors: | 1 x power IEC 60320 C14 |
| Power Output Connectors Details: | 8 x power IEC 60320 C13 |
| Max Electric Current: | 10 A |
| Networking | |
| Remote Management Interface: | Ethernet 10/100, RS-232 |
| Remote Management Protocol: | SNMP, Telnet, HTTP, HTTPS, TFTP |
| Expansion / Connectivity | |
| Interfaces: | 1 x management (Ethernet) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
| Miscellaneous | |
| Cables Included: | Power cable - integrated - 3 m |
| Features: | LCD display, voltage monitoring, current meter, power factor metre |
| Compliant Standards: | CB, EN 61000-6-2, IEC 60950-1, ISO 9001:2008, ISO 14001:2004, EN 60950-1:2006, EN55022:2010, RoHS 2011/65/EU, EN 55024:2010, WEEE 2012/19/EU, EN 61000-6-4:2007 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 60 °C |
| Dimensions & Weight | |
| Width: | 48.26 cm |
| Depth: | 20.3 cm |
| Height: | 4.445 cm |
Eaton G3 Metered Input ePDUs provide a best-in-class design featuring billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
The technical details come from 3rd party. edgemo is not responsible for any errors.
