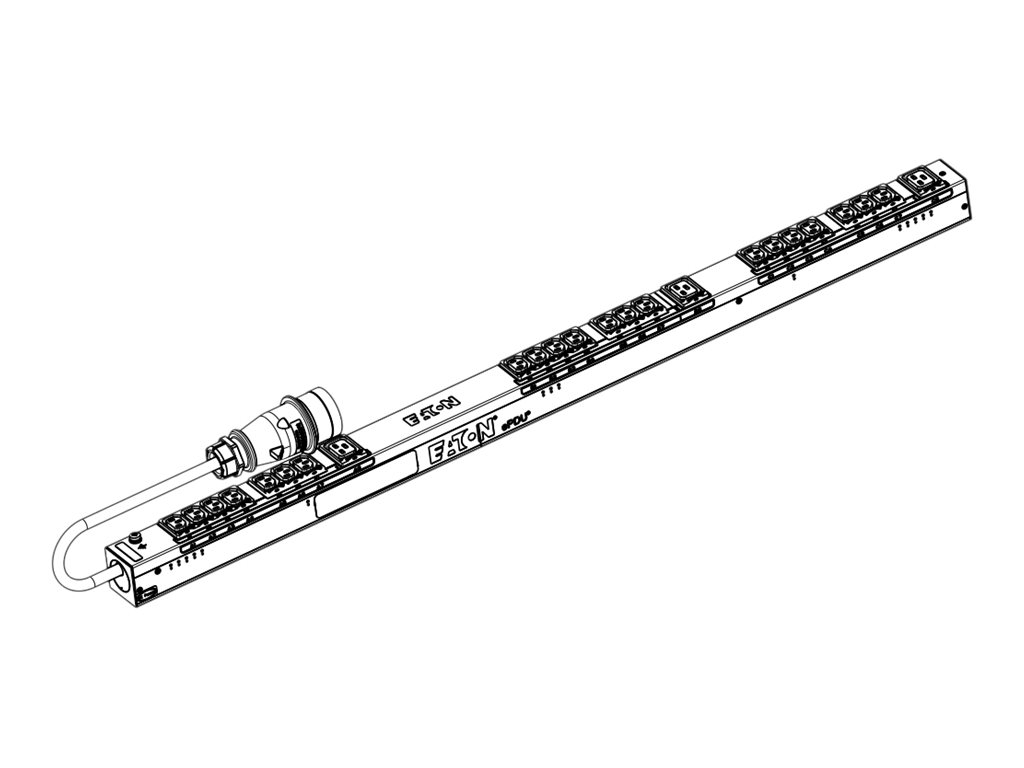

Printers & POSEaton ePDU G3 Basic - power distribution unit
SKU EBAB20
| Product Description: | Eaton ePDU G3 Basic - power distribution unit |
| Device Type: | Power distribution unit - rack-mountable |
| Cord Length: | 3 m |
| Rack Size: | 24U |
| Input Wiring: | 3-phase |
| Input Voltage: | AC 400 V |
| Input Connectors: | 1 x power IEC 60309 16A |
- Specifications
- Description
| General | |
| Device Type: | Power distribution unit - rack-mountable |
| Height (Rack Units): | 24U |
| Cord Length: | 3 m |
| Power Device | |
| Input Voltage: | AC 400 V |
| Input Wiring: | 3-phase |
| Frequency Required: | 50 Hz |
| Input Connectors: | 1 x power IEC 60309 16A |
| Power Output Connectors Details: | 21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19 |
| Max Electric Current: | 16 A |
| Miscellaneous | |
| Cables Included: | Power cable - integrated - 3 m |
| Compliant Standards: | REACH, ISO 9001:2008, ISO 14001:2004, IEC 60950-1 Second Edition, EN55022:2010, IEC 61000-6-2:2005, RoHS 2011/65/EU, EN50581:2012, EN 55024:2010, WEEE 2012/19/EU, EN 61000-6-4:2007+A1:2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 |
| Sustainability Information | |
| Packaging Recycled Content: | 100 % |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 60 °C |
| Dimensions & Weight | |
| Width: | 5.2 cm |
| Depth: | 5.3 cm |
| Height: | 107 cm |
Eaton G3 Basic ePDUs provide reliable power distribution for IT and data center applications. Designed to operate at high temperatures for high reliability and made from light-weight aluminum for ease of installation.
The technical details come from 3rd party. edgemo is not responsible for any errors.
