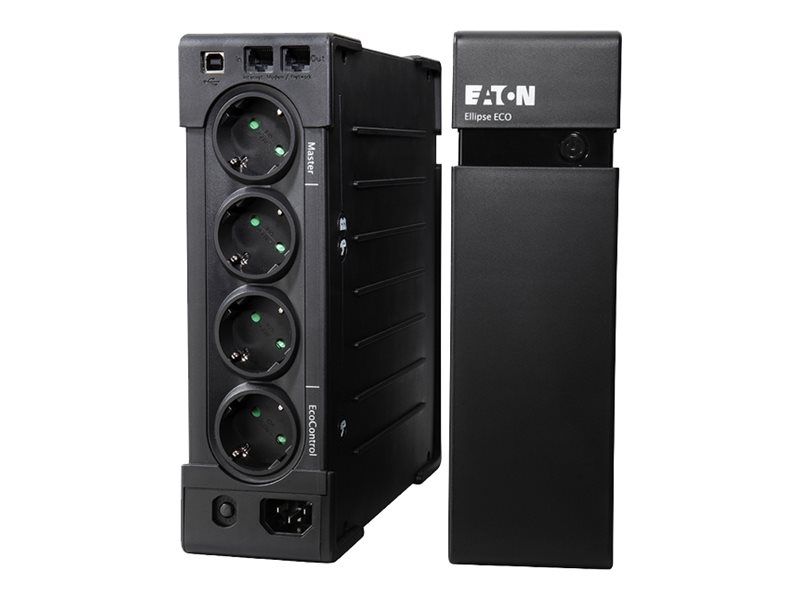

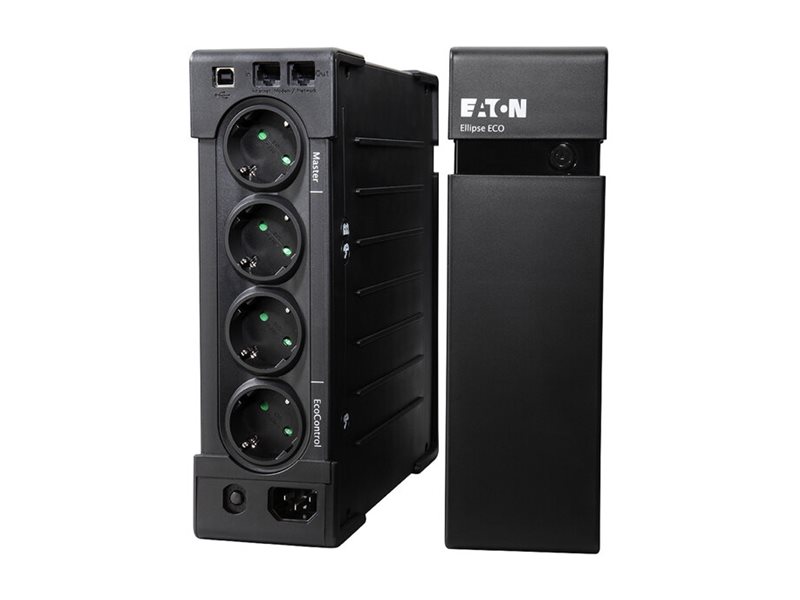

Printers & POSEaton Ellipse ECO 800 USB DIN - UPS - 500 Watt - 800 VA
SKU EL800USBDIN
| Product Description: | Eaton Ellipse ECO 800 USB DIN - UPS - 500 Watt - 800 VA |
| Device Type: | UPS - rack-mountable / external |
| Rack Size: | 19" - 2U |
| Weight: | 4.1 kg |
| Input Voltage: | AC 230 V |
| Output Voltage: | AC 220/230/240 V |
| Power Capacity: | 500 Watt / 800 VA |
- Specifications
- Description
| General | |
| Device Type: | UPS - rack-mountable / external |
| Height (Rack Units): | 2U |
| Rack Size: | 19" |
| Power Device | |
| UPS Technology: | Off-line |
| Input Voltage: | AC 230 V |
| Input Voltage Range: | AC 184 - 264 V |
| Input Voltage Range (Adjustable): | AC 161 - 284 V |
| Frequency Provided: | 50/60 Hz |
| Frequency Required: | 50/60 Hz |
| Input Connectors: | 1 x power |
| Power Output Connectors Details: | 3 (UPS and surge) ¦ 1 (surge) |
| Output Voltage: | AC 220/230/240 V 50/60 Hz |
| Power Capacity: | 500 Watt / 800 VA |
| Dataline Surge Protection: | Network/phone line - RJ-45/RJ-11 |
| Surge Suppression: | Yes |
| Circuit Protection: | Circuit breaker |
| Battery | |
| Technology: | Lead Acid |
| Run Time (Up To): | 11 min at half load ¦ 6 min at 70% load |
| Networking | |
| Remote Management Interface: | USB |
| Expansion / Connectivity | |
| Interfaces: | 1 x management (USB) - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included: | USB cable - external |
| Rack Mounting Kit: | Optional |
| Features: | Wall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function, Eco-efficiency |
| Compliant Standards: | CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1 |
| Software / System Requirements | |
| Software Included: | Intelligent Power Manager |
| OS Required: | Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 8.1 cm |
| Depth: | 23.5 cm |
| Height: | 26.3 cm |
| Weight: | 4.1 kg |
Ellipse ECO 800 USB DIN is a off-line UPS. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse Eco also provides effective protection against damaging surges.
The Eco Control function automatically disables peripherals when the master device is turned off in order to save up 20 % more energy compared to previous generation of UPS. This unit can either be placed horizontally, 19 inch rack mounted or wall mounted. The Ellipse Eco also includes the Eaton Intelligent Power Manager software. Ellipse ECO is an ideal protection for all business computers and electronic devices in an office environment.
The Eco Control function automatically disables peripherals when the master device is turned off in order to save up 20 % more energy compared to previous generation of UPS. This unit can either be placed horizontally, 19 inch rack mounted or wall mounted. The Ellipse Eco also includes the Eaton Intelligent Power Manager software. Ellipse ECO is an ideal protection for all business computers and electronic devices in an office environment.
- EcoControl function helps you save up to 25% energy compared to previous generation UPSs
- Includes a high performance surge-protection device which complies with IEC 61643-1 standard
- Convenient extra-flat design for easy installation in any office environment
- Protects data connections such as Ethernet, Internet and telephone lines
The technical details come from 3rd party. edgemo is not responsible for any errors.
