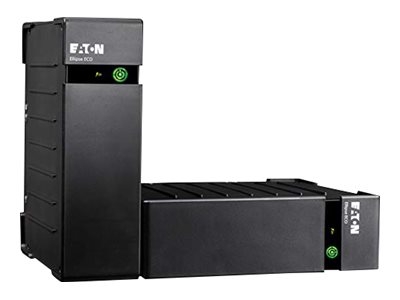

Printers & POSEaton Ellipse ECO 650 USB DIN - UPS - 400 Watt - 650 VA
SKU EL650USBDIN
| Product Description: | Eaton Ellipse ECO 650 USB DIN - UPS - 400 Watt - 650 VA |
| Device Type: | UPS - rack-mountable / external |
| Rack Size: | 19" - 2U |
| Weight: | 3.6 kg |
| Input Voltage: | AC 230 V |
| Output Voltage: | AC 220/230/240 V |
| Power Capacity: | 400 Watt / 650 VA |
- Specifications
- Description
| General | |
| Device Type: | UPS - rack-mountable / external |
| Height (Rack Units): | 2U |
| Rack Size: | 19" |
| Power Device | |
| UPS Technology: | Off-line |
| Input Voltage: | AC 230 V |
| Input Voltage Range: | AC 184 - 264 V |
| Input Voltage Range (Adjustable): | AC 161 - 284 V |
| Frequency Provided: | 50/60 Hz |
| Frequency Required: | 50/60 Hz |
| Input Connectors: | 1 x power |
| Power Output Connectors Details: | 3 (UPS and surge) ¦ 1 (surge) |
| Output Voltage: | AC 220/230/240 V 50/60 Hz |
| Power Capacity: | 400 Watt / 650 VA |
| Dataline Surge Protection: | Network/phone line - RJ-45/RJ-11 |
| Surge Suppression: | Yes |
| Circuit Protection: | Circuit breaker |
| Battery | |
| Technology: | Lead Acid |
| Run Time (Up To): | 9 min at half load ¦ 6 min at 70% load |
| Networking | |
| Remote Management Interface: | USB |
| Expansion / Connectivity | |
| Interfaces: | 1 x management (USB) - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included: | USB cable - external |
| Rack Mounting Kit: | Optional |
| Features: | Wall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function, Eco-efficiency |
| Compliant Standards: | CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1 |
| Software / System Requirements | |
| Software Included: | Intelligent Power Manager |
| OS Required: | Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width: | 8.1 cm |
| Depth: | 23.5 cm |
| Height: | 26.3 cm |
| Weight: | 3.6 kg |
Ellipse ECO 650 USB DIN is a off-line UPS. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse Eco also provides effective protection against damaging surges.
The Eco Control function automatically disables peripherals when the master device is turned off in order to save up 20 % more energy compared to previous generation of UPS. This model can either be placed horizontally, 19 inch rack mounted or wall mounted. The Ellipse Eco also includes the Eaton Intelligent Power Manager software. Ellipse ECO is an ideal protection for all business computers and electronic devices in an office environment.
The Eco Control function automatically disables peripherals when the master device is turned off in order to save up 20 % more energy compared to previous generation of UPS. This model can either be placed horizontally, 19 inch rack mounted or wall mounted. The Ellipse Eco also includes the Eaton Intelligent Power Manager software. Ellipse ECO is an ideal protection for all business computers and electronic devices in an office environment.
- Up to 25% energy savings
- Surge protection compliant with IEC 61643-1 standards
- 4 to 8 local outlets
- Attractive design with versatile, extra-flat format
- Dataline protection: Tel/Internet/Ethernet
- Replaceable battery
The technical details come from 3rd party. edgemo is not responsible for any errors.
