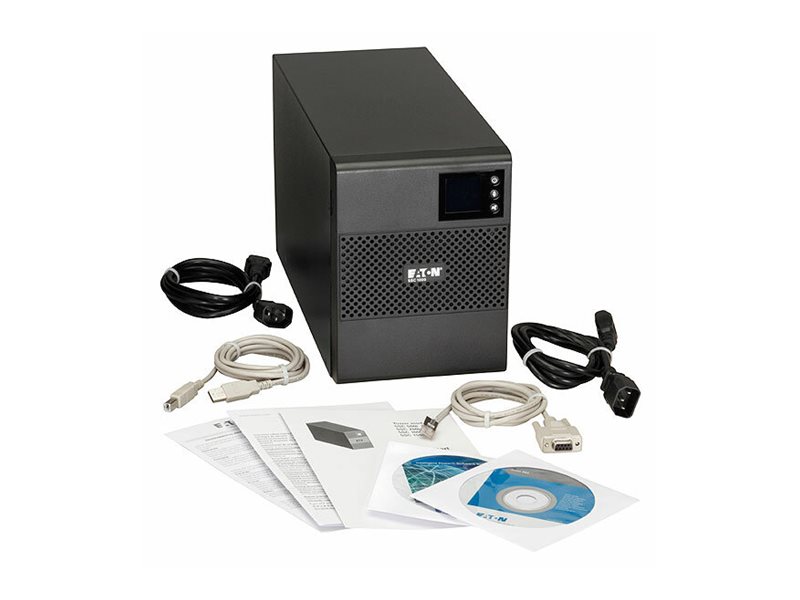

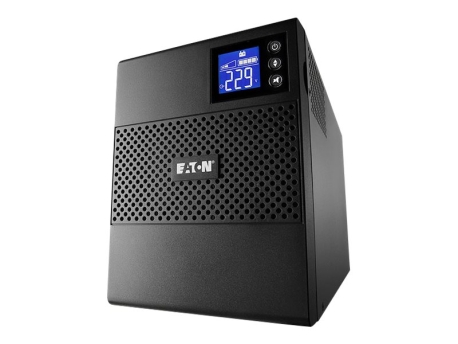

Eaton 5SC 500i - UPS - 350 Watt - 500 VA

SKU 5SC500I
Product Description:Eaton 5SC 500i - UPS - 350 Watt - 500 VA
Device Type:UPS - external
Weight:6.6 kg
Input Voltage:AC 230 V
Output Voltage:AC 230 V + 6% / - 10%
Power Capacity:350 Watt / 500 VA
Input Connectors:1 x power IEC 60320 C14
In Stock(25)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:UPS - external
Colour:Black
Power Device
UPS Technology:Line interactive
Input Voltage:AC 230 V
Input Voltage Range:AC 184 - 276 V
Frequency Provided:50/60 Hz
Frequency Required:50/60 Hz
Input Connectors:1 x power IEC 60320 C14
Power Output Connectors Details:4 x power IEC 60320 C13
Output Voltage:AC 230 V + 6% / - 10% - 50/60 Hz
Power Capacity:350 Watt / 500 VA
Output Waveform:Sinewave
Efficiency:97%
Battery
Run Time (Up To):5 min at full load ¦ 13 min at half load ¦ 9 min at 70% load
Networking
Remote Management Interface:RS-232, USB
Expansion / Connectivity
Interfaces:1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9)
Miscellaneous
Features:Advance Battery Management (ABM), LCD display, deep discharge protection
Compliant Standards:UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
Manufacturer Warranty
Service & Support:Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:35 °C
Sound Emission:40 dB
Dimensions & Weight
Width:15 cm
Depth:24 cm
Height:21 cm
Weight:6.6 kg
vis mere
Eaton 5SC 500VA UPS provides line-interactive, affordable and reliable protection for small business servers. It includes a LCD interface for real time status and measurement.
This unit also possesses the Advanced Battery Management (ABM) technology that increases battery lifetime. It is line interactive with Automatic Voltage Regulation (AVR). With its 4 IEC outputs and compact design the 5SC fits anywhere easily.
  • LCD interface clearly shows key information
  • Sinewave output for compatibility with today's small business servers
  • Compact design for easy integration even with space constraints and up to eight outlets for better flexibility
  • Reliable, long-lasting UPS with patented ABM technology that increases battery service life by up to 50%
  • Serial and USB ports are HID compliant for automatic integration into major OS
  • Eaton Intelligent Power software delivered as standard is compatible with all major operating systems




The technical details come from 3rd party. edgemo is not responsible for any errors.
