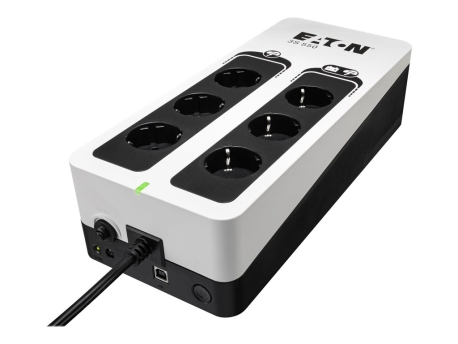

Eaton 3S 550 - UPS - 330 Watt - 550 VA

SKU 3S550D
Product Description:Eaton 3S 550 - UPS - 330 Watt - 550 VA
Device Type:UPS - external
Weight:3.2 kg
Input Wiring:1-phase
Input Voltage:AC 220-240 V
Output Voltage:AC 220/230/240 V
Power Capacity:330 Watt / 550 VA
03-01-2025
  • Specifications
  • Description
General
Device Type:UPS - external
Power Device
Input Voltage:AC 220-240 V
Input Voltage Range:AC 161 - 284 V
Frequency Provided:50/60 Hz
Input Wiring:1-phase
Frequency Required:50/60 Hz
Input Connectors:1
Power Output Connectors Details:3 x DIN (surge) ¦ 3 x DIN (UPS and surge)
Output Voltage:AC 220/230/240 V 50/60 Hz
Max Electric Current:10 A
Power Capacity:330 Watt / 550 VA
Surge Suppression:Yes
Circuit Protection:Circuit breaker
Battery
Technology:Lead Acid
Networking
Remote Management Interface:USB
Expansion / Connectivity
Interfaces:1 x management (USB)
Miscellaneous
Cables Included:Power cable - integrated ¦ USB cable
Features:On/off switch, reset button, cold-start function, deep discharge protection
Compliant Standards:IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, IEC 61643-11, EAC, Ukraine, CM, CB
Manufacturer Warranty
Service & Support:Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Dimensions & Weight
Width:14 cm
Depth:32.5 cm
Height:8.6 cm
Weight:3.2 kg
vis mere
Eaton 3S provides power and surge protection for desktop computers, wireless networks, gaming consoles, and other critical electronics in your home or business. Attractive design and glossy finish make the 3S a perfect fit for the modern office environment. Compact unit fits on or under your desk or can be mounted on a wall. Easy-to-replace battery helps to extend UPS service life. HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux).
  • Attractive design and glossy finish make the 3S a perfect fit for the modern office environment
  • The 3S comes with 6 Schuko (DIN) outlets for easy connection of typical computer configurations with peripherals
  • The 3S features a HID-compliant USB port (cable supplied), for automatic integration with common operating systems (Windows/macOS/Linux)
  • Protects Telephone, Internet and Ethernet line from "back door" power surges
  • Compact unit fits on or under your desk or can be mounted on a wall
  • Easy-to-replace battery helps to extend UPS service life




The technical details come from 3rd party. edgemo is not responsible for any errors.
