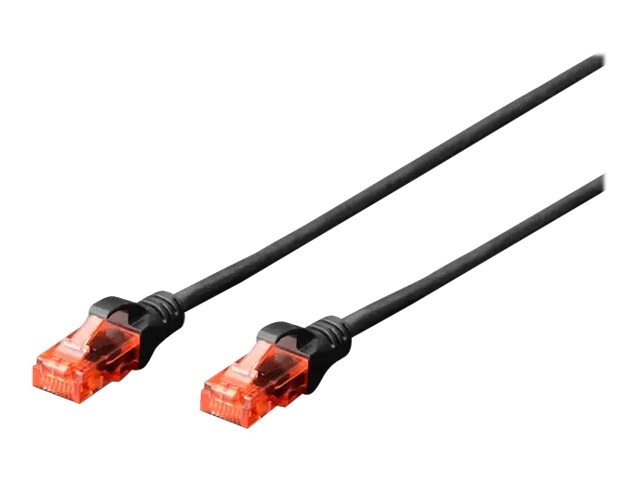

Printers & POSDIGITUS Professional patch cable - 1 m - black
SKU DK-1617-010/BL
| Product Description: | DIGITUS Professional patch cable - 1 m - black |
| Type: | Patch cable - CAT 6e |
| Technology: | Unshielded twisted pair (UTP) |
| Wiring Scheme: | T568B |
| Wires per Cable: | 8 wires |
| Features: | Halogen-free, molded, snagless, PoE+ Ready, strain relief, kink protection |
| Length: | 1 m |
- Specifications
- Description
| General | |
| Network Cable Type: | Patch cable - CAT 6e |
| Technology: | Unshielded twisted pair (UTP) |
| Wiring Scheme: | T568B |
| Jacket Material: | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG): | 26/7 |
| Wires per Cable: | 8 wires |
| Pairs per Cable: | 4 pairs |
| Plated Connector: | Gold |
| Features: | Halogen-free, molded, snagless, PoE+ Ready, strain relief, kink protection |
| Length: | 1 m |
| Colour: | Black |
| Connectivity | |
| Connector: | RJ-45 - male |
| Connector (Second End): | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards: | IEC 60332-1, ISO/IEC 11801, IEC 61034, EN 50173, ANSI/TIA-568-C - up to 250 MHz |
| Environmental Parameters | |
| Min Operating Temperature: | -20 °C |
| Max Operating Temperature: | 60 °C |
DIGITUS patch cables are designed and produced to fulfill the high requirements of various application areas in full volume. Each cable is fitted with a molded boot, which comes with kink protection and strain relief. Furthermore, the boot is equipped with a latch protection, that prevents the latching lever against breaking. You can easily identify the CAT 6, because of the transparent connector.
- Features LSZH sheath for optimal fire behavior and low smoke emissions
- Transparent plug for easy identification of CAT 6
- Copper conductor
- PoE+ ready
The technical details come from 3rd party. edgemo is not responsible for any errors.
