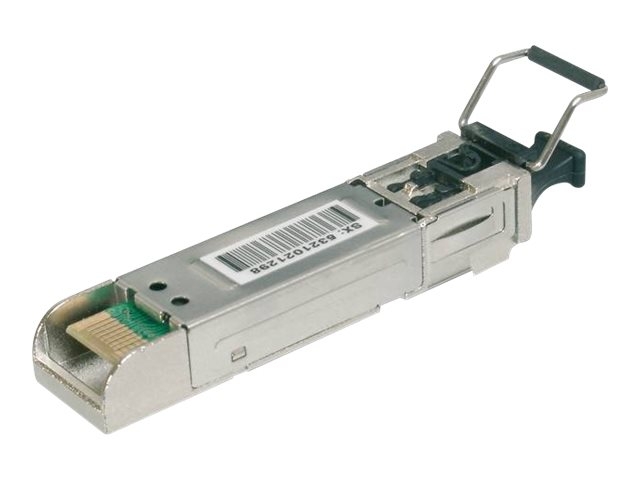

DIGITUS DN-81011 - SFP (mini-GBIC) transceiver module

SKU DN-81011
Product Description:DIGITUS DN-81011 - SFP (mini-GBIC) transceiver module
Device Type:SFP (mini-GBIC) transceiver module - LC single-mode
Form Factor:Plug-in module
Cabling Type:1000Base-LX
Data Transfer Rate:1.25 Gbps
Optical Wave Length:1310 nm
Max Transfer Distance:20 km
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:SFP (mini-GBIC) transceiver module
Form Factor:Plug-in module
Networking
Connectivity Technology:Wired
Cabling Type:1000Base-LX
Data Transfer Rate:1.25 Gbps
Optical Wave Length:1310 nm
Max Transfer Distance:20 km
Features:Hot swap module replacement
Compliant Standards:IEEE 802.3z
Expansion / Connectivity
Interfaces:1 x Ethernet 1000Base-LX - LC single-mode female
Compatible Slots:1 x SFP (mini-GBIC)
Miscellaneous
Compliant Standards:Plug and Play, Laser Class 1, EN 60825-1, MSA
Manufacturer Warranty
Service & Support:Limited warranty - 15 years
Environmental Parameters
Min Operating Temperature:-40 °C
Max Operating Temperature:85 °C
vis mere
The DIGITUS mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS modules makes possible a flexible usage of the fiber technology.
  • Mini GBIC SFP (Small Form Factor Pluggable) module
  • High quality and excellent reliability
  • 1.25 Gbps maximum data rate
  • Compliant to IEEE 802.3z Gigabit standard
  • Class 1 laser product compliant with EN 60825-1
  • Easy Plug and Play installation
  • MSA (Multi Source Agreement) compliant
  • Hot pluggable
  • For a distance of up to 20 km
  • Suitable for 09/125µm singlemode fiber cables
  • Safe fast-locking mechanism
  • 3.3V power supply
