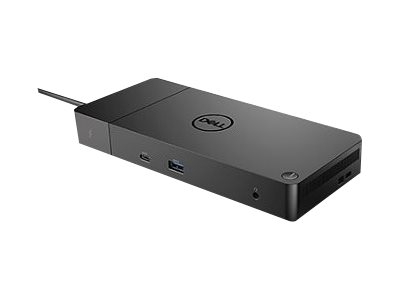

Dell Thunderbolt Dock WD19TB - docking station - USB-C / Thunderbolt 3 - HDMI, 2 x DP, Thunderbolt, USB-C - 1GbE

SKU DELL-WD19TB

Product Description:	Dell Thunderbolt Dock WD19TB - docking station - USB-C / Thunderbolt 3 - HDMI, 2 x DP, Thunderbolt, USB-C - 1GbE
Product Type:	Docking station
Docking Interface:	USB-C / Thunderbolt 3
Video Interfaces:	HDMI, 2 x DP, Thunderbolt, USB-C
Dimensions (WxDxH):	20.6 cm x 8.89 cm x 2.79 cm
Weight:	585 g
Networking:	Gigabit Ethernet

In Stock(4)

Specifications
Description
Accessories

General
Product Type:	Docking station
Width:	20.6 cm
Depth:	8.89 cm
Height:	2.79 cm
Weight:	585 g

Video
Max Resolution Details:	5120 x 2880 - 60 Hz

Networking
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity
Interfaces:	2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C ¦ 3 x USB 3.1 Gen 1 - 9 pin USB Type A ¦ 2 x USB-C 3.1 Gen 2 ¦ 1 x speakers - output - mini-phone 3.5 mm ¦ 1 x headset - output - mini-phone 3.5 mm ¦ 1 x network - Ethernet 1000 - RJ-45 ¦ 1 x Thunderbolt 3 - Thunderbolt - 24 pin USB-C

Miscellaneous
Cables Included:	1 x Thunderbolt 3 / USB-C cable - 80 cm
Features:	Security lock slot (cable lock sold separately), 130W power delivery to Dell systems
Security Slot Type:	Noble Wedge security slot / Kensington security slot

Power
Power Device:	Power adapter
Voltage Required:	AC 120/230 V (50/60 Hz)
Power Provided:	180 Watt

System Requirements
OS Required:	Red Hat Enterprise Linux, Windows 10, Ubuntu 18.04

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

Compatibility Information
Designed For:	Dell Latitude 3390 2-in-1, 3400, 3490, 3500, 3590, 5280, 5289 2-In-1, 5290, 5290 2-in-1, 5300, 5300 2-in-1, 5400, 5420 Rugged, 5424 Rugged, 5480, 5490, 5491, 5500, 5580, 5590, 5591, 7280, 7285 2-in-1, 7300, 7380, 7389 2-in-1, 7390, 7390 2-in-1, 7400, 7400 2-in-1, 7480, 7490 ¦ Dell Precision 3520, 3530, 3540, 5520, 5530, 5530 2-in-1, 5540, 7520, 7530, 7720, 7730 ¦ Dell XPS 13 9360, 13 9365 2-in-1, 13 9370, 13 9380, 15 7590, 15 9560, 15 9575 2-in-1

Compatibility Information

Designed For:

Dell Latitude 3390 2-in-1, 3400, 3490, 3500, 3590, 5280, 5289 2-In-1, 5290, 5290 2-in-1, 5300, 5300 2-in-1, 5400, 5420 Rugged, 5424 Rugged, 5480, 5490, 5491, 5500, 5580, 5590, 5591, 7280, 7285 2-in-1, 7300, 7380, 7389 2-in-1, 7390, 7390 2-in-1, 7400, 7400 2-in-1, 7480, 7490 ¦ Dell Precision 3520, 3530, 3540, 5520, 5530, 5530 2-in-1, 5540, 7520, 7530, 7720, 7730 ¦ Dell XPS 13 9360, 13 9365 2-in-1, 13 9370, 13 9380, 15 7590, 15 9560, 15 9575 2-in-1

vis mere

Boost your PC's power on this powerful and modular dock, with a future-ready design.

Smooth and seamless
Mix and match
Ultimate connectivity

The technical details come from 3rd party. edgemo is not responsible for any errors.
