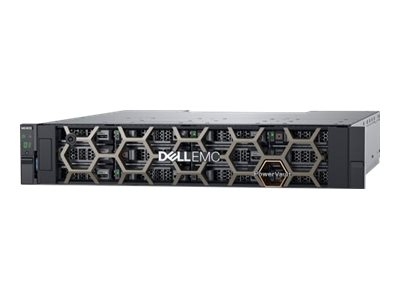

Dell PowerVault ME4024 - hard drive array

SKU ME4024FC_A
Product Description:Dell PowerVault ME4024 - hard drive array
Device Type:Hard drive array
Enclosure Type:Rack-mountable - 2U
Colour:Black
Total Array Capacity:4.8 TB
Interface:16Gb Fibre Channel
Host Channels:2
Not in stock
  • Specifications
  • Description
General
Device Type:Hard drive array
Enclosure Type:Rack-mountable - 2U
Enclosure Colour:Black
Chassis
Installed Devices / Modules Qty:2
Supported Devices / Modules Qty:24
Supported Drives:SAS-3
Storage
Total Array Capacity:4.8 TB
HDD Array External Interface:16Gb Fibre Channel
Host Channels:2
Processor
CPU:No CPU
Storage Controller
Type:RAID
Interface Type:SAS 12Gb/s
Cache / Buffer Size (Max):8 GB
RAID Level:RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50
Hard Drive
Type:HDD - hot-swap
Capacity:2 x 2.4 TB
Interface Type:SAS
Spindle Speed:10000 rpm
Expansion / Connectivity
Expansion Bays:24 (total) / 22 (free) x hot-swap - 2.5"
Interfaces:16Gb Fibre Channel ¦ SAS 12Gb/s ¦ Management - RJ-45
Miscellaneous
Included Accessories:Bezel, sliding rack rails
Power
Power Device:2 x internal power supply - hot-plug
Power Redundancy:Yes
Power Redundancy Scheme:1+1
Voltage Required:AC 120/230 V - 50/60 Hz
Power Provided:580 Watt
Dimensions & Weight
Width:48.3 cm
Depth:60.29 cm
Height:8.79 cm
Manufacturer Warranty
Bundled Services:3 years Parts Only Warranty
Environmental Parameters
Min Operating Temperature:5 °C
Max Operating Temperature:35 °C
Humidity Range Operating:10 - 80% (non-condensing)
vis mere
Affordable PowerVault ME4 series storage, purpose-built and optimized for SAN/DAS simplicity and accelerated performance.
  • All-around simplicity
  • Get all-inclusive, enterprise-class capabilities
  • Optimized for SAN and DAS




The technical details come from 3rd party. edgemo is not responsible for any errors.
