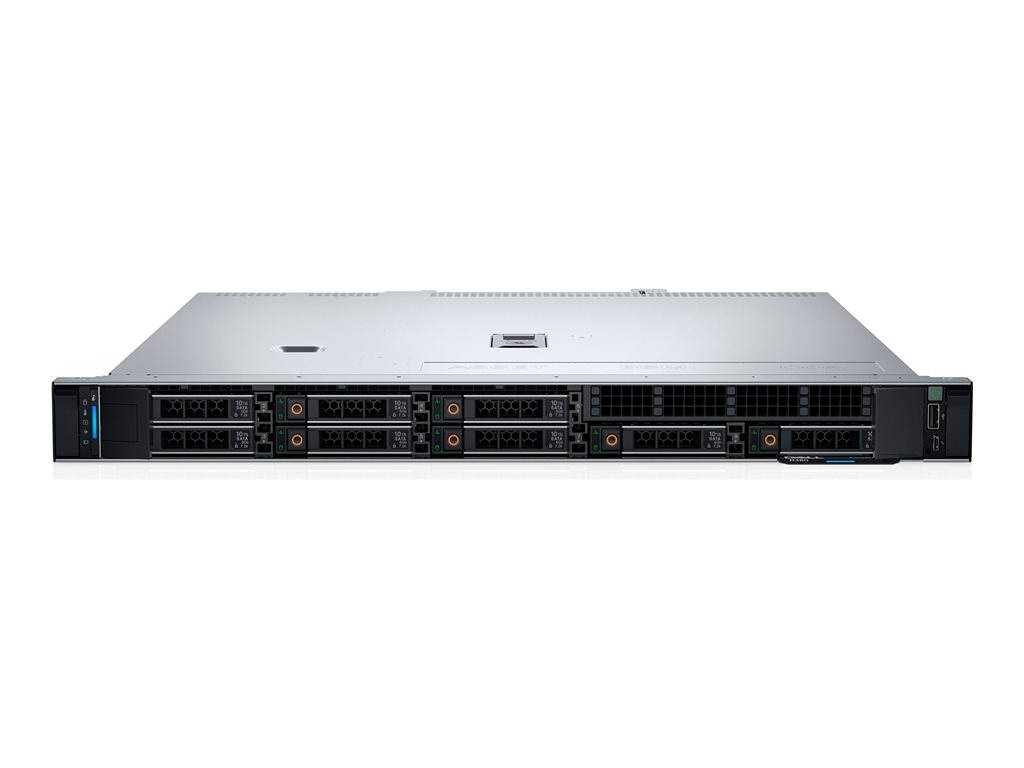

Dell PowerEdge R360 - rack-mountable Xeon E-2434 3.4 GHz - 16 GB - SSD 480 GB

SKU XRH14

Product Description:	Dell PowerEdge R360 - rack-mountable Xeon E-2434 3.4 GHz - 16 GB - SSD 480 GB
Type:	Server - rack-mountable
Bundled Services:	3 Years ProSupport
Height (Rack Units):	1U
Server Scalability:	1-way
Processor:	1 x Intel Xeon E-2434 / 3.4 GHz (up to 5 GHz, (Quad-Core)
Processor Main Features:	8 Threads

Not in stock

Specifications
Description
Accessories

General
Type:	Server
Bundled Services:	3 Years ProSupport
Product Form Factor:	Rack-mountable - 1U
Embedded Security:	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:	1-way
Hot-Swap Bays Qty:	8

Processor / Chipset
CPU:	Intel Xeon E-2434
Clock Speed:	3.4 GHz
Max Turbo Speed:	5 GHz
Number of Cores:	Quad-Core
CPU Qty:	1
Max CPU Qty:	1
Processor Main Features:	8 Threads

Cache Memory
Installed Size:	12 MB
Cache Per Processor:	12 MB

RAM
Installed Size:	16 GB (installed) / 128 GB (max)
Technology:	DDR5 SDRAM - ECC
Effective Memory Speed:	4800 MHz
Rated Memory Speed:	4800 MHz
Form Factor:	DIMM 288-pin
Slots:	4 (Total) / 3 (empty)
Features:	Unbuffered
Configuration Features:	1 x 16 GB

Hard Drive
Type:	SSD - hot-swap - 2.5"
Capacity:	1 x 480 GB
Interface Type:	SATA 6Gb/s
Features:	1 DWPD, Read Intensive, advanced format 512

Storage Controller
Type:	1
Storage Controller Name:	PERC H755 Front

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	Matrox G200eW
Video Memory:	16 MB
Video Interfaces:	VGA

Networking
Interface (Bus) Type:	LAN-on-motherboard (LOM)
Ethernet Ports:	2 x Gigabit Ethernet
Ethernet Controller:	Broadcom BCM5720
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller:	Integrated Dell Remote Access Controller 9 Enterprise 16G

Expansion / Connectivity
Bays:	8 (total) / 7 (free) x hot-swap 2.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line
Interfaces:	2 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 (1 front, 1 rear) ¦ 1 x VGA (1 rear) ¦ 1 x management - micro-USB Type-AB (1 in front) (iDRAC Direct port) ¦ 2 x USB 3.2 Gen 1 (1 rear, 1 internal) ¦ 1 x serial

Miscellaneous
Included Accessories:	Bezel, ReadyRails sliding rails without cable management arm, power cord (2m, 10A, C13 to C14)
Pricing Type:	Build To Plan (BTP)
Manufacturer Selling Program:	Dell Smart Selection, Dell Smart Value

Power
Device Type:	Power supply - hot-plug
Power Redundancy:	Optional
Power Redundancy Scheme:	1+1 (with optional power supply)
Installed Qty:	1
Max Supported Qty:	2
Voltage Required:	AC 200-240 V
Power Provided:	700 Watt
80 PLUS Certification:	80 PLUS Titanium

Operating System / Software
OS Provided:	No operating system

Sustainability Information
Carbon Footprint:	1140 kg carbon emissions
Total CF/unit Standard Deviation (kg CO2e):	943
Manufacturing (kg CO2e):	308
Logistics (kg CO2e):	103
Use (kg CO2e):	718
EOL (kg CO2e):	11
Total Carbon w/o Use Phase (kg CO2e):	422
PAIA Version:	1.4.0, 2024

Dimensions & Weight
Width:	48.2 cm
Depth:	59.89 cm
Height:	4.28 cm

vis mere

As the foundation for a complete, adaptive IT solution, Dell PowerEdge servers deliver superior agility and reliability, outstanding operational efficiencies, and top performance at any scale. With its advanced servers, Dell is making server innovations more affordable and accessible, putting more power into the hands of more people than ever before.

More processing power
High-capacity, low-power memory
Scalable, efficient local storage
Simplified, intelligent management
Energy efficiency

The technical details come from 3rd party. edgemo is not responsible for any errors.
