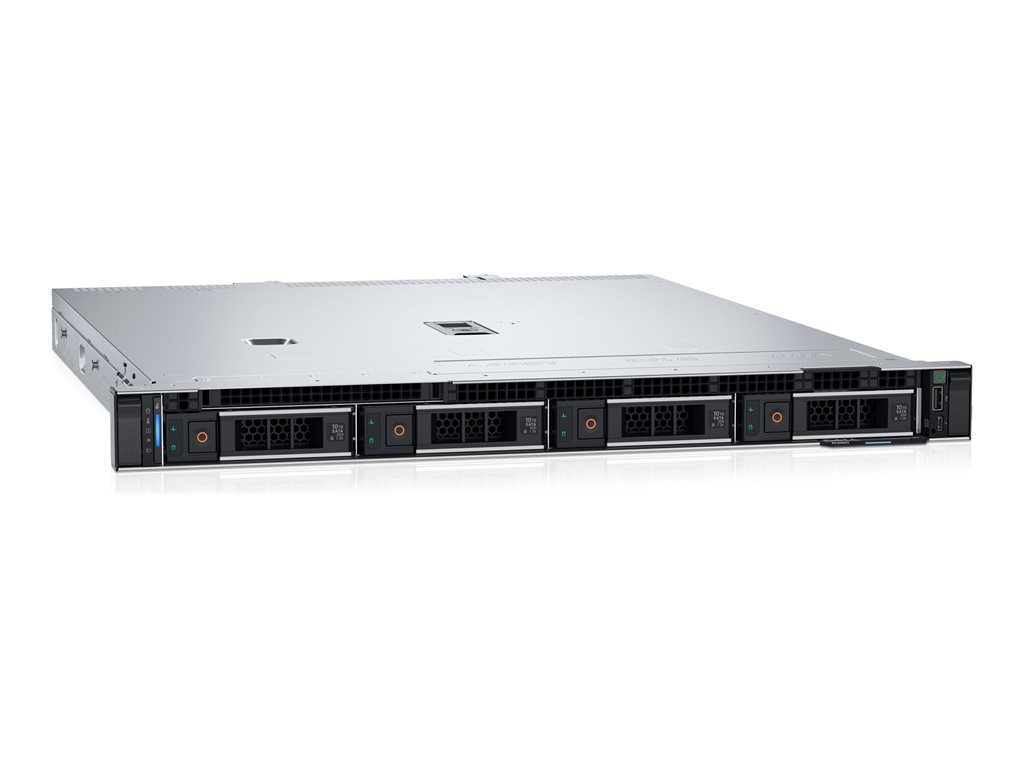

Dell PowerEdge R360 - rack-mountable Xeon E-2414 2.6 GHz - 16 GB - SSD 480 GB
SKU 4V57T
Product Description: | Dell PowerEdge R360 - rack-mountable Xeon E-2414 2.6 GHz - 16 GB - SSD 480 GB |
Type: | Server - rack-mountable |
Bundled Services: | 3 Years Basic Next Business Day |
Height (Rack Units): | 1U |
Server Scalability: | 1-way |
Processor: | 1 x Intel Xeon E-2414 / 2.6 GHz (up to 4.5 GHz, (Quad-Core) |
Cache Memory: | 12 MB |
- Specifications
- Description
General | |
Type: | Server |
Bundled Services: | 3 Years Basic Next Business Day |
Product Form Factor: | Rack-mountable - 1U |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability: | 1-way |
Hot-Swap Bays Qty: | 4 |
Processor / Chipset | |
CPU: | Intel Xeon E-2414 |
Clock Speed: | 2.6 GHz |
Max Turbo Speed: | 4.5 GHz |
Number of Cores: | Quad-Core |
CPU Qty: | 1 |
Max CPU Qty: | 1 |
Cache Memory | |
Installed Size: | 12 MB |
Cache Per Processor: | 12 MB |
RAM | |
Installed Size: | 16 GB (installed) / 128 GB (max) |
Technology: | DDR5 SDRAM - ECC |
Effective Memory Speed: | 4800 MHz |
Rated Memory Speed: | 4800 MHz |
Form Factor: | DIMM 288-pin |
Slots: | 4 (Total) / 3 (empty) |
Features: | Unbuffered |
Configuration Features: | 1 x 16 GB |
Hard Drive | |
Type: | SSD - hot-swap - 2.5" |
Capacity: | 1 x 480 GB |
Interface Type: | SATA 6Gb/s |
Features: | 1 DWPD, Read Intensive, advanced format 512 |
Storage Controller | |
Type: | 1 |
Storage Controller Name: | PERC H355 Front |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Graphics Processor: | Matrox G200eW |
Video Memory: | 16 MB |
Video Interfaces: | VGA |
Networking | |
Interface (Bus) Type: | LAN-on-motherboard (LOM) |
Ethernet Ports: | 2 x Gigabit Ethernet |
Ethernet Controller: | Broadcom BCM5720 |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Controller: | Integrated Dell Remote Access Controller 9 Enterprise 16G |
Expansion / Connectivity | |
Bays: | 4 (total) / 3 (free) x hot-swap 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 (1 front, 1 rear) ¦ 1 x VGA (1 rear) ¦ 1 x management - micro-USB Type-AB (1 in front) (iDRAC Direct port) ¦ 2 x USB 3.2 Gen 1 (1 rear, 1 internal) ¦ 1 x serial |
Miscellaneous | |
Included Accessories: | Bezel, ReadyRails sliding rails without cable management arm, power cord (2m, 10A, C13 to C14) |
Pricing Type: | Build To Plan (BTP) |
Manufacturer Selling Program: | Dell Smart Selection, Dell Smart Value |
Power | |
Device Type: | Power supply - hot-plug |
Power Redundancy: | Optional |
Power Redundancy Scheme: | 1+1 (with optional power supply) |
Installed Qty: | 1 |
Max Supported Qty: | 2 |
Voltage Required: | AC 200-240 V |
Power Provided: | 700 Watt |
80 PLUS Certification: | 80 PLUS Titanium |
Operating System / Software | |
OS Provided: | No operating system |
Dimensions & Weight | |
Width: | 48.2 cm |
Depth: | 59.89 cm |
Height: | 4.28 cm |
As the foundation for a complete, adaptive IT solution, Dell PowerEdge servers deliver superior agility and reliability, outstanding operational efficiencies, and top performance at any scale. With its advanced servers, Dell is making server innovations more affordable and accessible, putting more power into the hands of more people than ever before.
- More processing power
- High-capacity, low-power memory
- Scalable, efficient local storage
- Simplified, intelligent management
- Energy efficiency
The technical details come from 3rd party. edgemo is not responsible for any errors.
