Printers & POSDatalogic Touch TD1100 65 Lite - barcode scanner
SKU TD1120-BK-65

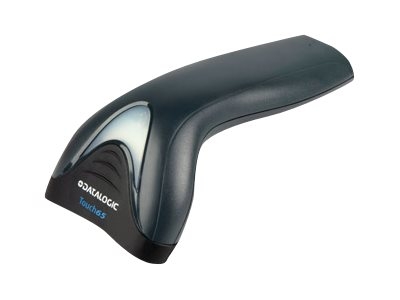

| Product Description: | Datalogic Touch TD1100 65 Lite - barcode scanner |
| Type: | Barcode scanner - handheld - USB - decoded |
| Colour: | Black |
| Minimum Bar Width: | 4 mil |
| Scan Field Width: | 15 cm |
| Scan Element Type: | CCD - Red LED |
| Connectivity Technology: | Wired |
- Specifications
- Description
| General | |
| Type: | Barcode scanner - handheld |
| Colour: | Black |
| Barcode | |
| Interface Type: | USB |
| Minimum Bar Width: | 4 mil |
| Scan Field Width: | 15 cm |
| Scan Element Type: | CCD - Red LED |
| Light Source Wave Length: | 640 nm |
| Scan Mode: | Single-pass |
| Skew (Degrees): | 70 |
| Pitch (Degrees): | 65 |
| Print Contrast Signal (PCS): | 25% |
| Decode Capability: | Code 93, Industrial 2 of 5, Code 39, ISBT 128, IATA, GS1 DataBar, BC 412, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, Code 11, Interleaved 2 of 5, Codablock F, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Standard 2 of 5, GS1 DataBar Stacked |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wired |
| OK Notification: | Beeper, LED indicator |
| Features: | ESD (electrostatic discharge) safe |
| Expansion / Connectivity | |
| Interfaces: | 1 x USB |
| Miscellaneous | |
| Cables Included: | No data cable is included |
| Compliant Standards: | RoHS, JavaPOS, IP30 |
| Power | |
| Electric Current Required: | 20 mA (standby), 100 mA (typical) |
| Software | |
| Software Included: | Drivers & Utilities, Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Dimensions & Weight | |
| Width: | 5.8 cm |
| Depth: | 8.4 cm |
| Height: | 16 cm |
| Weight: | 130 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Drop Specification: | 1.5 m to concrete |
The Touch TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes. Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness and a 1.5 m/5.0 feet drop resistance, which is typically included in a higher range of products.
A 'read-thru' holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes. Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness and a 1.5 m/5.0 feet drop resistance, which is typically included in a higher range of products.
A 'read-thru' holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items.
- Excellent reading performance on damaged or poorly printed bar codes
- Supports GS1 DataBar linear codes
- Compact and innovative 'read-thru' holder for hands-free reading capability
The technical details come from 3rd party. edgemo is not responsible for any errors.
