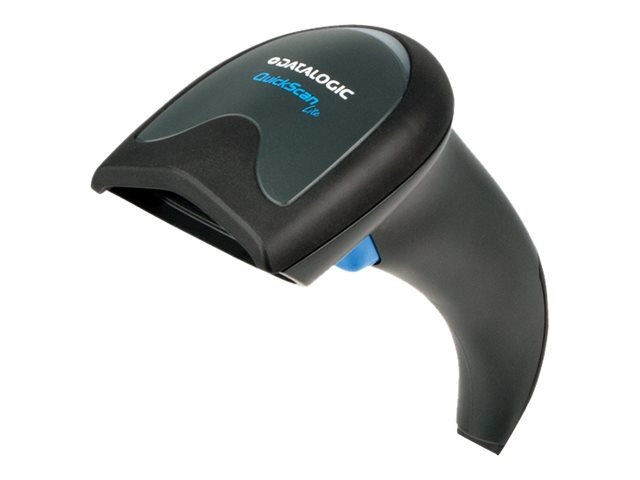

Printers & POSDatalogic QuickScan Lite QW2170 - barcode scanner
SKU QW2170-BK-10
| Product Description: | Datalogic QuickScan Lite QW2170 - barcode scanner |
| Type: | Barcode scanner - handheld - keyboard wedge, RS-232 - decoded |
| Packaged Quantity: | 10 (specifications are for single item) |
| Colour: | Black |
| Minimum Bar Width: | 4 mil |
| Scan Element Type: | Linear imager - Red LED |
| Scan Speed: | 400 scan / sec |
- Specifications
- Description
| General | |
| Packaged Quantity: | 10 (specifications are for single item) |
| Type: | Barcode scanner - handheld |
| Colour: | Black |
| Barcode | |
| Interface Type: | Keyboard wedge, RS-232 |
| Minimum Bar Width: | 4 mil |
| Scan Element Type: | Linear imager - Red LED |
| Light Source Wave Length: | 610-650 nm |
| Scan Speed: | 400 scan / sec |
| Max Working Distance: | 60 cm |
| Skew (Degrees): | 70 |
| Pitch (Degrees): | 65 |
| Print Contrast Signal (PCS): | 25% |
| Decode Capability: | EAN/JAN, GS1 DataBar, Postnet, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, Royal Mail, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wired |
| OK Notification: | Beeper, LED indicator |
| Miscellaneous | |
| Compliant Standards: | RoHS, EN 60825-1, IP42 |
| Power | |
| Electric Current Required: | 340 mA (typical), 190 mA (standby) |
| Dimensions & Weight | |
| Width: | 6.5 cm |
| Depth: | 7 cm |
| Height: | 17 cm |
| Weight: | 119 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Drop Specification: | 1.5 m to concrete |
The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.
The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.
The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.
- Wide scan angle
- Laser-like thinner and extended scan line
- Datalogic green spot for good-read feedback
- Built with over molded rubber to protect the imager when dropped
- Compact and multi-position stand
- Uses the same cables and power supplies as the current QuickScan products
The technical details come from 3rd party. edgemo is not responsible for any errors.
