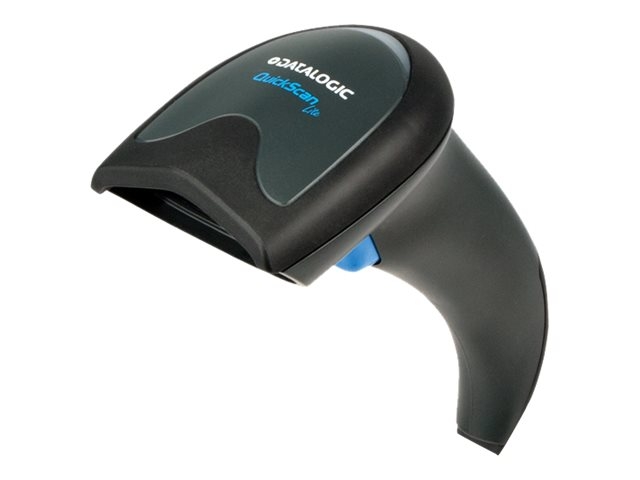

Datalogic QuickScan Lite QW2120 - barcode scanner

SKU QW2120-BK
Product Description:Datalogic QuickScan Lite QW2120 - barcode scanner
Type:Barcode scanner - handheld - USB - decoded
Colour:Black
Minimum Bar Width:4 mil
Scan Element Type:Linear imager - Red LED
Scan Speed:400 scan / sec
Connectivity Technology:Wired
05-04-2024
  • Specifications
  • Description
General
Type:Barcode scanner - handheld
Colour:Black
Barcode
Interface Type:USB
Minimum Bar Width:4 mil
Scan Element Type:Linear imager - Red LED
Light Source Wave Length:610-650 nm
Scan Speed:400 scan / sec
Max Working Distance:60 cm
Skew (Degrees):70
Pitch (Degrees):65
Print Contrast Signal (PCS):25%
Decode Capability:EAN/JAN, GS1 DataBar, Postnet, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, Royal Mail, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked
TTL Decoding:Decoded
Connectivity Technology:Wired
OK Notification:Beeper, LED indicator
Expansion / Connectivity
Interfaces:1 x USB - Type A
Miscellaneous
Compliant Standards:RoHS, EN 60825-1, IP42
Power
Electric Current Required:340 mA (typical), 190 mA (standby)
Dimensions & Weight
Width:6.5 cm
Depth:7 cm
Height:17 cm
Weight:119 g
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:50 °C
Humidity Range Operating:5 - 95% (non-condensing)
Drop Specification:1.5 m to concrete
vis mere
The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 series linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.
The QW2100 series imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.
The QW2100 series imager features Datalogic's exclusively patented 'Green Spot' technology for good-read feedback directly on the code. When the reader is in Stand Mode, the Green Spot remains on to show the operator where to position the code for quick and intuitive reading. A specially designed stand has been created for the QW2100 series imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a 'tiltable head' for various angle settings.
  • Wide scan angle
  • Laser-like thinner and extended scan line
  • Datalogic green spot for good-read feedback
  • Built with over molded rubber to protect the imager when dropped
  • Compact and multi-position stand
  • Water and particulate sealing rating: IP42




The technical details come from 3rd party. edgemo is not responsible for any errors.
