Printers & POSDatalogic PowerScan PBT9100 - barcode scanner
SKU PBT9100-RB
| Product Description: | Datalogic PowerScan PBT9100 - barcode scanner |
| Type: | Barcode scanner - portable - Bluetooth 3.0 - decoded |
| Colour: | Black/yellow |
| Minimum Bar Width: | 2.5 mil |
| Scan Field Width: | 2 cm - 230 cm |
| Scan Element Type: | Linear imager |
| Connectivity Technology: | Wireless |
- Specifications
- Description
| General | |
| Type: | Barcode scanner - portable |
| Colour: | Black/yellow |
| Barcode | |
| Interface Type: | Bluetooth 3.0 |
| Minimum Bar Width: | 2.5 mil |
| Scan Field Width: | 2 cm - 230 cm |
| Scan Element Type: | Linear imager |
| Scan Mode: | Single-pass |
| Skew (Degrees): | 70 |
| Pitch (Degrees): | 75 |
| Print Contrast Signal (PCS): | 15% |
| Decode Capability: | Code 93, Industrial 2 of 5, Code 39, IATA, ISBN, GS1 DataBar, Code 32, Code 39 Full ASCII, Codabar, Code 128, Code 11, Interleaved 2 of 5, Codablock F, Plessey, Standard 2 of 5, EAN-128, MSI, UPC/EAN supplementals, Datalogic 2 of 5, Code 4, Code 5 |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wireless |
| OK Notification: | Beeper, LED indicator |
| Features: | Datalogic Three Green Lights (3GL) |
| Networking | |
| Wireless Connectivity: | Bluetooth 3.0 |
| Miscellaneous | |
| Compliant Standards: | RoHS, China RoHS, IEC 62471 |
| Power | |
| Power Device: | Power adapter |
| Battery: | 1 x Lithium Ion |
| Software | |
| Software Included: | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Dimensions & Weight | |
| Width: | 7.4 cm |
| Depth: | 11 cm |
| Height: | 21.2 cm |
| Weight: | 405 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | -20 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Drop Specification: | 2 m to concrete |

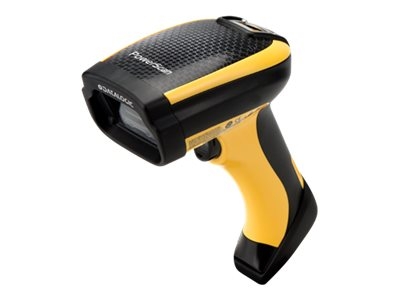

The PowerScan PBT9100 linear imager is a cordless device, offering state-of-the-art performance in an industrial product and features standard Bluetooth wireless technology. This linear imager introduces Datalogic's innovative scanning technology, implementing a green scanning line, which has the same definition of a laser beam with all the benefits of a linear imager. The PBT9100 imager also features Datalogic's exclusive 3 Green Lights (3GL) for superior good read feedback. The 'Green Spot' technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle. The PBT9100 imager's mechanics have been developed to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.
- Piconet with a few scanners, connected to the same base station
- IP65 rating and drop resistance
- Datalogic's scanning linear imager technology
- Ethernet connectivity
- Bluetooth compliant
The technical details come from 3rd party. edgemo is not responsible for any errors.
