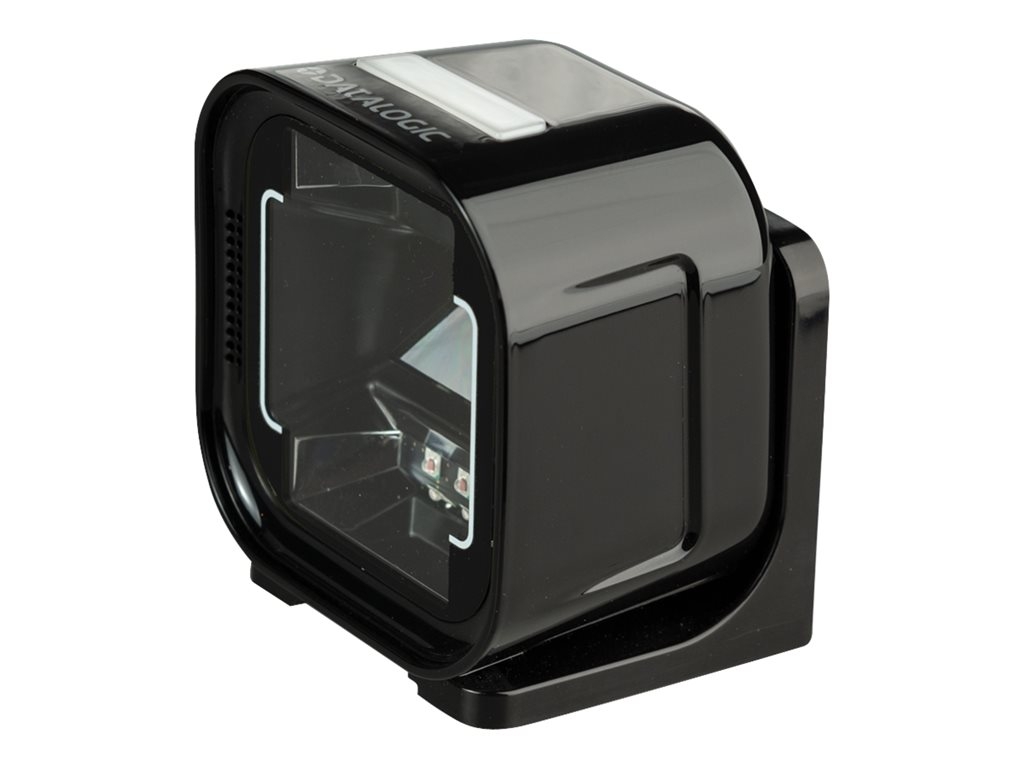

Printers & POSDatalogic Magellan 1500i - Standard Configuration - barcode scanner
SKU MG1503-10200
| Product Description: | Datalogic Magellan 1500i - Standard Configuration - barcode scanner |
| Type: | Barcode scanner - stationary - stationary - interface cable required - decoded |
| Colour: | Black |
| Minimum Bar Width: | 5 mil |
| Scan Field Width: | 30 cm |
| Scan Element Type: | 2D imager |
| Sensor Resolution: | 1280 x 800 |
- Specifications
- Description
| General | |
| Type: | Barcode scanner - stationary - stationary |
| Colour: | Black |
| Barcode | |
| Interface Type: | Interface cable required |
| Minimum Bar Width: | 5 mil |
| Scan Field Width: | 30 cm |
| Scan Element Type: | 2D imager |
| Sensor Resolution: | 1280 x 800 |
| Scan Mode: | Fixed projection |
| Scan Speed: | 1500 mm / sec |
| Max Working Distance: | 25 cm |
| Skew (Degrees): | 75 |
| Pitch (Degrees): | 65 |
| Print Contrast Signal (PCS): | 25% |
| Decode Capability: | GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wired |
| OK Notification: | Beeper, LED indicator |
| Features: | ESD (electrostatic discharge) safe, Green Spot technology |
| Miscellaneous | |
| Pricing Type: | OEM |
| Compliant Standards: | RoHS, JavaPOS, OPOS, IEC 60825-1, IP52 |
| Power | |
| Electric Current Required: | 300 mA (standby), 500 mA (operating) |
| Dimensions & Weight | |
| Width: | 6 cm |
| Depth: | 7.5 cm |
| Height: | 15 cm |
| Weight: | 240 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
The Magellan 1500i is a high-performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i scanner provides outstanding performance on 1D and 2D bar codes from a variety of printed and mobile sources. The consistent, comfortable illumination enables seamless reading of 1D and 2D bar codes from printed or mobile sources while reducing reflection and eliminating flickering that can cause operator discomfort.
The technical details come from 3rd party. edgemo is not responsible for any errors.
