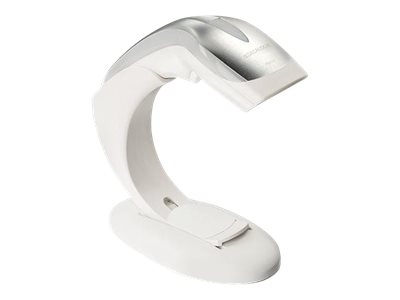

Datalogic Heron HD3130 - barcode scanner

SKU HD3130-WH
Product Description:Datalogic Heron HD3130 - barcode scanner
Type:Barcode scanner - handheld - interface cable required - decoded
Colour:White
Minimum Bar Width:4 mil
Scan Element Type:CCD
Scan Speed:270 scan / sec
Connectivity Technology:Wired
Not in stock
  • Specifications
  • Description
General
Type:Barcode scanner - handheld
Colour:White
Barcode
Interface Type:Interface cable required
Minimum Bar Width:4 mil
Scan Element Type:CCD
Scan Mode:Single-pass
Scan Speed:270 scan / sec
Max Working Distance:60 cm
Print Contrast Signal (PCS):15%
Decode Capability:GS1 DataBar, China Post, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked
TTL Decoding:Decoded
Connectivity Technology:Wired
OK Notification:Beeper, LED indicator
Features:Triggered, Green Spot technology
Miscellaneous
Included Accessories:Stand
Compliant Standards:RoHS, IP40, IEC 62471
Power
Electric Current Required:500 mA (peak), 300 mA (typical)
Dimensions & Weight
Width:6.8 cm
Depth:15.2 cm
Height:15.3 cm
Weight:150 g
Manufacturer Warranty
Service & Support:Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:50 °C
Humidity Range Operating:5 - 90% (non-condensing)
Drop Specification:1.5 m to concrete
vis mere
The Heron HD3100 linear imager brings unmatched elegance along with the advanced technology to the modern point-of-sale. The stylish silhouette of the great imager enriched with multiple color changing lights, innovative and modern design material, together with the audio speaker, amplifies the customer's brand experience at the point-of-sale.
The Heron imager features in-mold decorated top covers with a choice of 'Carbon Fiber' or 'Silver' design. This imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer's brand.
The Heron HD3100 imager provides outstanding reading performance. It also includes the patented 'Green Spot' technology for good-read feedback with extended functionalities: the Green Spot can be used as an 'aiming tool' when used in hands-free operations, and when placed in the stand, the Green Spot remains on, showing the operator where to position the code for quicker and intuitive reading.
The Heron imager is a fusion of the features your business needs, the fashionable style customers will love, and the enticing allure of light and sound. You will be empowered to deliver unique scanning solution!
  • Innovative and unique design raises the bar for cutting-edge POS checkout experience
  • In-mold decorated top cover
  • Multiple changing color LEDs on sides and top
  • Polyphonic speaker for a wide variety of choices for audio feedback
  • Easily customized with logo, top cover, and visual/audio feedback
  • Datalogic patented 'Green Spot' technology for aiming and good-read feedback
  • Automatic switching between handheld and hands-free operation
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI




The technical details come from 3rd party. edgemo is not responsible for any errors.
