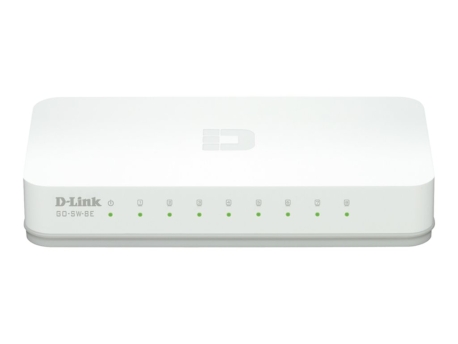

dlinkgo 8-Port Fast Ethernet Easy Desktop Switch GO-SW-8E - switch - 8 ports
SKU GO-SW-8E/E
Product Description: | dlinkgo 8-Port Fast Ethernet Easy Desktop Switch GO-SW-8E - switch - 8 ports |
Device Type: | Switch - 8 ports |
Subtype: | Fast Ethernet |
Ports: | 8 x 10/100 |
Performance: | Switching capacity: 1.6 Gbps |
MAC Address Table Size: | 2K entries |
Features: | Flow control, auto-negotiation, store and forward, half duplex mode, full duplex mode |
- Specifications
- Description
General | |
Device Type: | Switch - 8 ports |
Enclosure Type: | Desktop |
Subtype: | Fast Ethernet |
Ports: | 8 x 10/100 |
Performance: | Switching capacity: 1.6 Gbps |
MAC Address Table Size: | 2K entries |
Features: | Flow control, auto-negotiation, store and forward, half duplex mode, full duplex mode |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Status Indicators: | Power, link/activity |
Expansion / Connectivity | |
Interfaces: | 8 x 100Base-TX RJ-45 |
Power | |
Power Device: | External power adapter |
Voltage Required: | DC 5 V |
Electric Current Required: | 1 A |
Miscellaneous | |
Compliant Standards: | FCC Class B certified, cUL, CB, VCCI Class B |
Dimensions & Weight | |
Width: | 14.15 cm |
Depth: | 7.85 cm |
Height: | 2.38 cm |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
Min Storage Temperature: | -10 °C |
Max Storage Temperature: | 70 °C |
Humidity Range Storage: | 5 - 90% (non-condensing) |
The dlinkgo GO-SW-8E 8-Port Fast Ethernet Easy Desktop Switch allows you to quickly set up a fast, reliable, and efficient wired network in your home or office. The GO-SW-8E is an unmanaged 10/100 Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10 Mbps or 100 Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Connect the GO-SW-8E to multiple computers to share files and folders, or connect it to a router to share an Internet connection.
- Eight 10/100 Mbps Fast Ethernet ports
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- IEEE 802.3x flow control
- Store-and-forward switching scheme
- RoHS compliant
- Plug-and-Play installation
- Auto MDI/MDIX crossover for all ports
- IEEE 802.3az energy efficient Ethernet
- Port standby
- Cable length detection
- Link status detection
- Compact lightweight chassis
- Ports located conveniently at the rear
- Noise-free operation
- Device interfaces
- Green Ethernet
- 1.6 Gbps switching fabric
- Secure store-and-forward switching scheme
- Supports 2048-byte jumbo frames
The technical details come from 3rd party. edgemo is not responsible for any errors.
