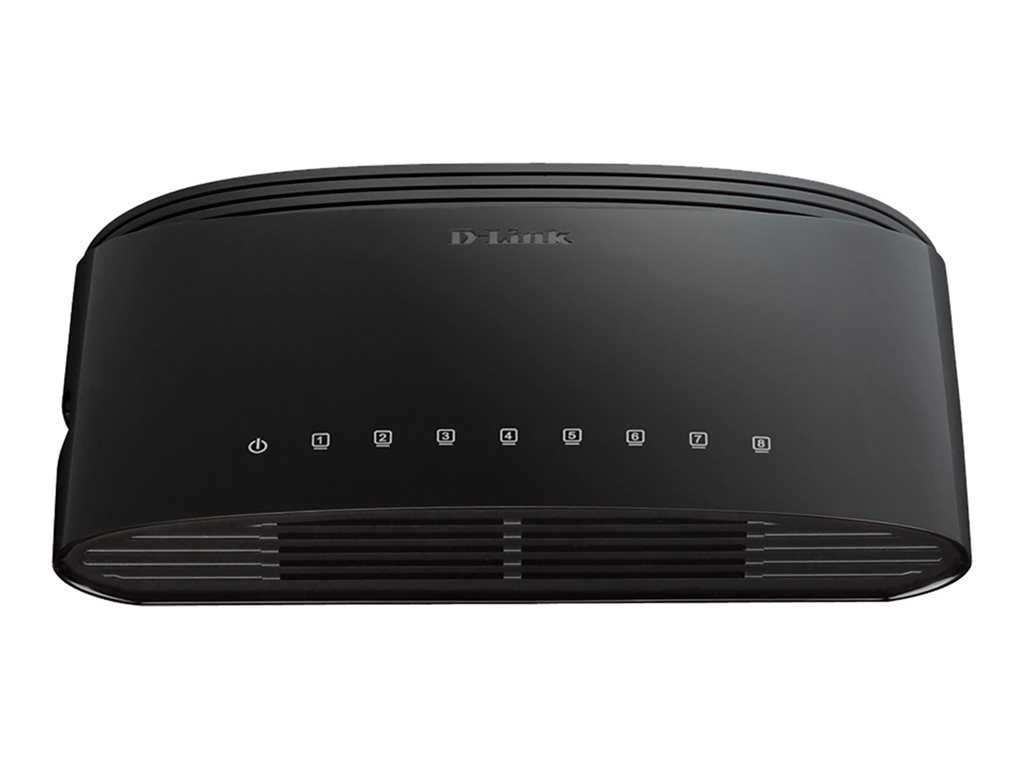

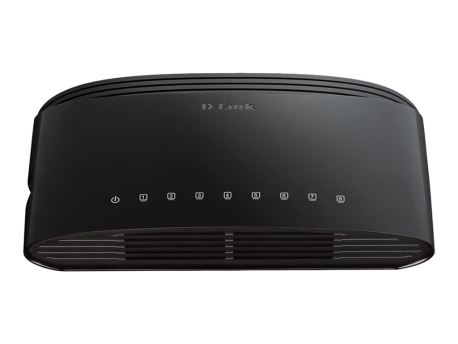

D-Link DES 1008D - switch - 8 ports - unmanaged

SKU DES-1008D/E
Product Description:D-Link DES 1008D - switch - 8 ports - unmanaged
Device Type:Switch - 8 ports - unmanaged
Subtype:Fast Ethernet
Ports:8 x 10/100
Performance:Switching fabric bandwidth: 1.6 Gbps
MAC Address Table Size:2K entries
Features:Flow control, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, MAC address filtering, half duplex mode, full duplex mode
In Stock(6)
  • Specifications
  • Description
General
Device Type:Switch - 8 ports - unmanaged
Enclosure Type:Desktop
Subtype:Fast Ethernet
Ports:8 x 10/100
Performance:Switching fabric bandwidth: 1.6 Gbps
MAC Address Table Size:2K entries
Features:Flow control, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, MAC address filtering, half duplex mode, full duplex mode
Compliant Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Status Indicators:Power, link/activity
Expansion / Connectivity
Interfaces:8 x 100Base-TX RJ-45
Power
Power Device:External power adapter
Power Consumption Operational:5.2 Watt
Miscellaneous
Compliant Standards:FCC Class B certified, VCCI Class B ITE, cUL, CB, ICES-003 Class B, C-Tick Class B, RoHS
Localisation:Continental Europe
Dimensions & Weight
Width:16.45 cm
Depth:11.15 cm
Height:3.6 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:50 °C
Humidity Range Operating:10 - 90% (non-condensing)
Min Storage Temperature:-10 °C
Max Storage Temperature:70 °C
Humidity Range Storage:5 - 90% (non-condensing)
vis mere
This compact palm-sized switch is designed for the home and small offices. It provides 8 10/100Mbps ports to connect to 8 workstations and servers. Hubs can also connect to this switch.
All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports.
IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer. At 200Mbps full duplex, this switch provides high-speed data pipes to your Servers with minimum data transfer loss.
Auto-negotiation of MDI/MDIX cross over eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, workstation, a hub or another switch using the usual straight-through twisted-pair cable.




The technical details come from 3rd party. edgemo is not responsible for any errors.
