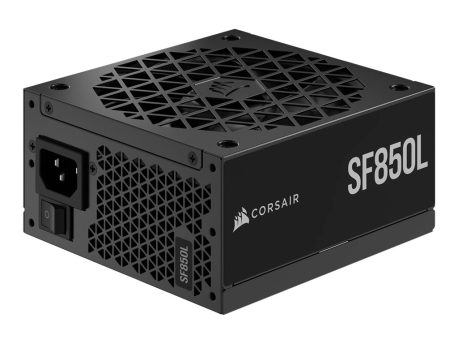

Printers & POSCORSAIR SF Series SF850L - power supply - 850 Watt
SKU CP-9020245-EU
| Product Description: | CORSAIR SF Series SF850L - power supply - 850 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 3.0/ EPS12V |
| 80 PLUS Certification: | 80 PLUS Gold |
| Weight: | 1.12 kg |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 3.0/ EPS12V |
| PSU Form Factor: | SFX-L |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 12VHPWR ¦ 3 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power |
| Output Voltage: | +3.3, +5, +12 V |
| Power Capacity: | 850 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 70.8 A ¦ +5VSB - 3 A |
| Efficiency: | 90% |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Gold |
| Miscellaneous | |
| Included Accessories: | Cable ties |
| Cables Included: | AC input cable ¦ ATX power cable 30 cm ¦ 16-pin 12VHPWR power cable 40 cm ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 50 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 40 cm ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 40 cm ¦ 2 x power 15 pin SATA cable 44.5 cm ¦ 4 pin internal power cable 33 cm |
| MTBF: | 100,000 hours |
| Cooling System: | 120 mm fan |
| Features: | Fully modular, Zero RPM fan mode |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 7 years |
| Environmental Parameters | |
| Max Operating Temperature: | 40 °C |
| Dimensions & Weight | |
| Width: | 12.5 cm |
| Depth: | 13 cm |
| Height: | 6.3 cm |
| Weight: | 1.12 kg |
CORSAIR SF-L Series Fully Modular SFX Power Supplies with ATX 3.0 and PCIe 5.0 compliance provide the continuous high wattages demanded by the PC hardware, all in a space-saving SFX-L form-factor.
- Compact SFX-L form factor
- ATX 3.0 certified
- CORSAIR Type 5 micro-fit connectors
- 120 mm fan with Zero RPM mode support
- 80 PLUS Gold certified
- 105°C-rated capacitors
- 40°C maximum operating temperature
The technical details come from 3rd party. edgemo is not responsible for any errors.
