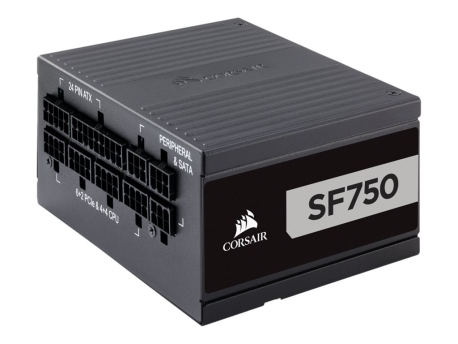

CORSAIR SF Series SF750 - power supply - 750 Watt

SKU CP-9020186-EU

Product Description:	CORSAIR SF Series SF750 - power supply - 750 Watt
Device Type:	Power supply - internal
Specification Compliance:	ATX12V 2.4/ EPS12V 2.92 / SFX12V
80 PLUS Certification:	80 PLUS Platinum
Localisation:	Europe
Input Voltage:	AC 100-240 V
Output Voltage:	+3.3, +5, ±12 V

26-05-2024

Specifications
Description
Accessories

General
Device Type:	Power supply - internal
Specification Compliance:	ATX12V 2.4/ EPS12V 2.92 / SFX12V
PSU Form Factor:	SFX
Localisation:	Europe

Power Device
Input Voltage:	AC 100-240 V
Frequency Required:	47 - 63 Hz
Power Output Connectors Details:	1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	750 Watt
Output Current:	+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Efficiency:	92%
Modular Cable Management:	Yes
80 PLUS Certification:	80 PLUS Platinum

Miscellaneous
Included Accessories:	Case badge, cable ties, cable bag, SFX to ATX bracket
MTBF:	100,000 hours
Cooling System:	92 mm fan
Features:	Sleeved cables, Zero RPM fan mode, rifle bearing cooling fan, fully modular

Manufacturer Warranty
Service & Support:	Limited warranty - 7 years

Dimensions & Weight
Width:	12.5 cm
Depth:	10 cm
Height:	6.3 cm

vis mere

The CORSAIR SF750 80 PLUS Platinum SFX Power Supply is an extraordinarily power-dense PSU, ready to power the most cutting-edge small form factor PCs with 750 continuous watts.

92mm PWM low noise cooling fan
Fully modular cables
SFX-to-ATX bracket included

The technical details come from 3rd party. edgemo is not responsible for any errors.
