Printers & POSCORSAIR SF Series SF600 - power supply - 600 Watt
SKU CP-9020182-EU

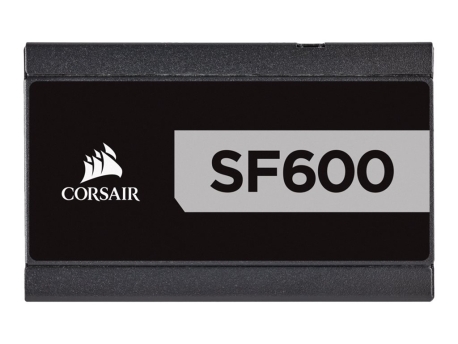

| Product Description: | CORSAIR SF Series SF600 - power supply - 600 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 / SFX12V |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Weight: | 860 g |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 / SFX12V |
| PSU Form Factor: | SFX |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 600 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 50 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency: | 92% |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Miscellaneous | |
| Included Accessories: | Screws, case badge, cable ties, cable bag, SFX to ATX bracket |
| MTBF: | 100,000 hours |
| Cooling System: | 92 mm fan |
| Features: | Sleeved cables, Zero RPM fan mode, rifle bearing cooling fan, fully modular |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 7 years |
| Dimensions & Weight | |
| Width: | 12.5 cm |
| Depth: | 10 cm |
| Height: | 6.3 cm |
| Weight: | 860 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 18.5 cm |
| Shipping Depth: | 24.6 cm |
| Shipping Height: | 10.5 cm |
| Shipping Weight: | 2 kg |
SF series power supplies bring legendary Corsair performance and reliability to the SFX small form factor standard. They have the features found in full-size high performance power supplies, with certification for 80 PLUS Gold efficiency, superior voltage regulation, Zero RPM mode for virtually silent operation, and 105°C All Japanese capacitors for better reliability.
- 80 PLUS Gold certified
- SFX form factor
- Fully modular cable set
- 100% all Japanese 105°C capacitors
- Zero RPM fan mode
The technical details come from 3rd party. edgemo is not responsible for any errors.
