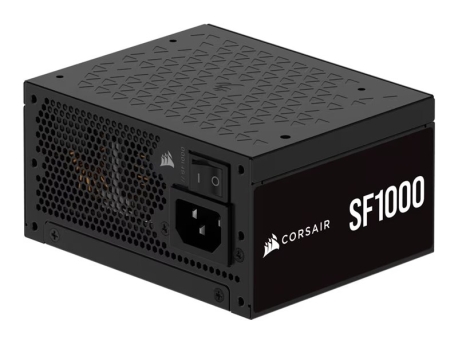

Printers & POSCORSAIR SF Series SF1000 - power supply - 1000 Watt
SKU CP-9020257-EU
| Product Description: | CORSAIR SF Series SF1000 - power supply - 1000 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 3.1/ EPS12V |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
| Output Voltage: | +3.3, +5, +12 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 3.1/ EPS12V |
| PSU Form Factor: | SFX |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 12VHPWR ¦ 3 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power |
| Output Voltage: | +3.3, +5, +12 V |
| Power Capacity: | 1000 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83.3 A ¦ +5VSB - 3 A |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Miscellaneous | |
| Included Accessories: | Cable ties |
| Cables Included: | AC input cable ¦ ATX power cable 30 cm ¦ 16-pin 12VHPWR power cable 40 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 40 cm ¦ 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 40 cm ¦ 2 x power 15 pin SATA cable 44.5 cm ¦ 4 pin internal power cable 33 cm |
| MTBF: | 100,000 hours |
| Cooling System: | 92 mm fan |
| Features: | Fluid dynamic bearing cooling fan, fully modular, Zero RPM fan mode, undervoltage protection, over voltage protection, short-circuit protection, overpower protection, overheat protection |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 7 years |
| Environmental Parameters | |
| Max Operating Temperature: | 50 °C |
| Dimensions & Weight | |
| Width: | 12.5 cm |
| Depth: | 10 cm |
| Height: | 6.35 cm |
The CORSAIR SF Series SF1000 power supply offers exceptional efficiency and versatility for your PC or server build. With 80 PLUS Platinum certification, it ensures high energy efficiency, reducing electricity costs and heat generation. Its 92 mm cooling fan, equipped with a zero RPM fan mode, keeps your system cool and quiet under low to medium loads. The fully modular cable management system allows you to use only the cables you need, leading to a cleaner build and better airflow. With comprehensive protection mechanisms, including overheat, overpower, overvoltage, short-circuit, and undervoltage protection, the SF1000 keeps your components safe against electrical anomalies. Suitable for powering demanding systems, the SF1000's 1000 watts of power and wide range of compatible connectors make it a solid choice for high-end PCs or reliable servers.
- 80 PLUS Platinum certification for high energy efficiency
- 92 mm cooling fan with zero RPM mode for quiet operation
- Fully modular for a clean build and improved airflow
- Comprehensive electrical protection for peace of mind
- 1000 watts of power to support demanding systems
The technical details come from 3rd party. edgemo is not responsible for any errors.
