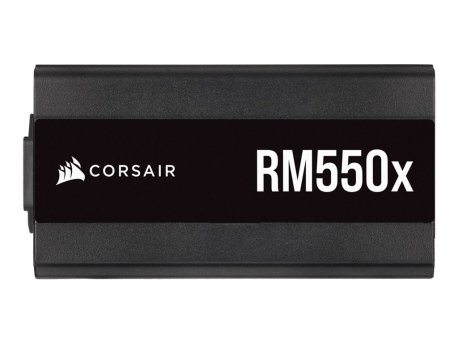

Printers & POSCORSAIR RMx Series RM550x - power supply - 550 Watt
SKU CP-9020197-EU
| Product Description: | CORSAIR RMx Series RM550x - power supply - 550 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V / EPS12V |
| 80 PLUS Certification: | 80 PLUS Gold |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
| Power Capacity: | 550 Watt |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V / EPS12V |
| PSU Form Factor: | ATX |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 4 PIN internal power ¦ 7 x 15 pin Serial ATA power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
| Power Capacity: | 550 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 45.8 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Gold |
| Miscellaneous | |
| Included Accessories: | Cable ties |
| Cooling System: | 135 mm fan |
| Features: | Fully modular, magnetic levitation bearing cooling fan, Zero RPM fan mode, DC-DC technology, LLC resonant converter technology, over voltage protection, over current protection, overheat protection, short-circuit protection |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 10 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 16 cm |
| Height: | 8.6 cm |
Corsair RMx series power supplies give you extremely tight voltage control, quiet operation, Gold-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they're a great choice for high performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. And, the fully modular DC cables make builds and upgrades easy, with clean, great-looking results.
- 80 PLUS Gold certified
- Japanese 105°C capacitors
- Zero RPM fan mode
- Fully modular cable set
The technical details come from 3rd party. edgemo is not responsible for any errors.
