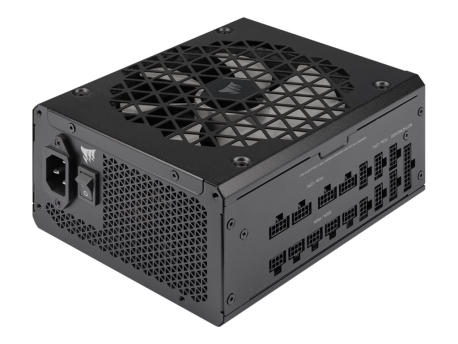

CORSAIR RMx Series RM1200X SHIFT - power supply - 1200 Watt
SKU CP-9020254-EU
Product Description: | CORSAIR RMx Series RM1200X SHIFT - power supply - 1200 Watt |
Device Type: | Power supply - internal |
Specification Compliance: | ATX12V 3.0/ EPS12V 2.92 |
80 PLUS Certification: | 80 PLUS Gold |
Weight: | 2 kg |
Localisation: | Europe |
Input Voltage: | AC 100-240 V |
- Specifications
- Description
General | |
Device Type: | Power supply - internal |
Specification Compliance: | ATX12V 3.0/ EPS12V 2.92 |
PSU Form Factor: | ATX |
Localisation: | Europe |
Power Device | |
Input Voltage: | AC 100-240 V |
Frequency Required: | 47 - 63 Hz |
Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12VHPWR ¦ 4 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 16 x 15 pin Serial ATA power ¦ 8 x 4 PIN internal power |
Output Voltage: | +3.3, +5, +12 V |
Power Capacity: | 1200 Watt |
Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 100 A ¦ +5VSB - 3 A |
Efficiency: | 90% |
Modular Cable Management: | Yes |
80 PLUS Certification: | 80 PLUS Gold |
Miscellaneous | |
Included Accessories: | Cable ties, mounting screw |
Cables Included: | AC input cable ¦ Power 24 pin ATX modular cable 61 cm ¦ 16-pin 12VHPWR power cable 65 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 65 cm ¦ 4 x power 15 pin SATA cable 80 cm ¦ 2 x 4 pin internal power cable 75 cm |
MTBF: | 100,000 hours |
Cooling System: | 140 mm fan |
Features: | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, DC-DC technology, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, LLC resonant converter technology, Modern Standby compatible |
Compliant Standards: | EMC, RoHS, LVD, EN/IEC 63000:2018, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, EN IEC 61000-3-2:2019+A1:2021 |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 10 years |
Dimensions & Weight | |
Width: | 15 cm |
Depth: | 18 cm |
Height: | 8.6 cm |
Weight: | 2 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 21.4 cm |
Shipping Depth: | 30.2 cm |
Shipping Height: | 12.9 cm |
Shipping Weight: | 4 kg |
- Innovative side panel connectors for ease of access
- ATX 3.0 standard certified, 80 PLUS Gold
- Compatible with PCIe 5.0 GPUs such as Nvidia 4000 series
