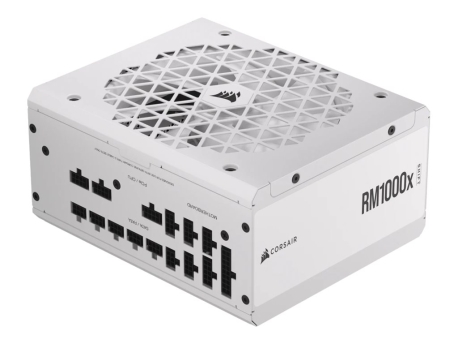

CORSAIR RMx Series RM1000X SHIFT - power supply - 1000 Watt

SKU CP-9020275-EU
Product Description:CORSAIR RMx Series RM1000X SHIFT - power supply - 1000 Watt
Device Type:Power supply - internal
Specification Compliance:ATX12V 3.0/ EPS12V 2.92
80 PLUS Certification:80 PLUS Gold
Weight:1.7 kg
Input Voltage:AC 100-240 V
Output Voltage:+3.3, +5, +12 V
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Power supply - internal
Specification Compliance:ATX12V 3.0/ EPS12V 2.92
PSU Form Factor:ATX
Colour:White
Power Device
Input Voltage:AC 100-240 V
Frequency Required:47 - 63 Hz
Power Output Connectors Details:1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12VHPWR ¦ 2 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 16 x 15 pin Serial ATA power ¦ 8 x 4 PIN internal power
Output Voltage:+3.3, +5, +12 V
Power Capacity:1000 Watt
Output Current:+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83.3 A ¦ +5VSB - 3 A
Efficiency:90%
Modular Cable Management:Yes
80 PLUS Certification:80 PLUS Gold
Miscellaneous
Included Accessories:Cable ties, mounting screw
Cables Included:AC input cable ¦ Power 24 pin ATX modular cable 61 cm ¦ 16-pin 12VHPWR power cable 65 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 3 x 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 65 cm ¦ 4 x power 15 pin SATA cable 80 cm ¦ 2 x 4 pin internal power cable 75 cm
MTBF:100,000 hours
Cooling System:140 mm fan
Features:Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, DC-DC technology, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, LLC resonant converter technology, Modern Standby compatible, side connections
Compliant Standards:EMC, RoHS, LVD, EN/IEC 63000:2018, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, EN IEC 61000-3-2:2019+A1:2021
Manufacturer Warranty
Service & Support:Limited warranty - 10 years
Dimensions & Weight
Weight:1.7 kg
vis mere
CORSAIR RMx SHIFT series fully modular power supplies boast a revolutionary patent-pending side cable interface to keep all your connections within easy reach, for exceptionally convenient 80 PLUS Gold efficient power.
  • Side mounted connections
  • ATX 3.0 certified
  • CORSAIR Type 5 micro-fit connectors
  • 140 mm fan with zero RPM mode support
  • 80 PLUS Gold certified
  • 105°C-rated capacitors




The technical details come from 3rd party. edgemo is not responsible for any errors.
