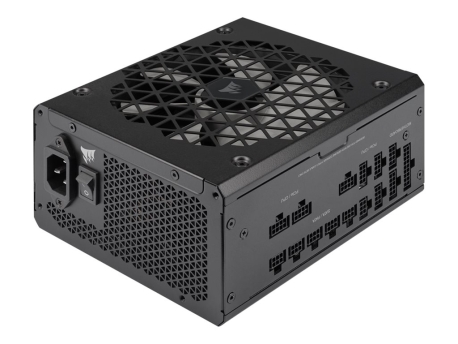

Printers & POSCORSAIR RMx Series RM1000X SHIFT - power supply - 1000 Watt
SKU CP-9020253-EU
| Product Description: | CORSAIR RMx Series RM1000X SHIFT - power supply - 1000 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 3.0/ EPS12V 2.92 |
| 80 PLUS Certification: | 80 PLUS Gold |
| Weight: | 1.9 kg |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 3.0/ EPS12V 2.92 |
| PSU Form Factor: | ATX |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12VHPWR ¦ 2 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 16 x 15 pin Serial ATA power ¦ 8 x 4 PIN internal power |
| Output Voltage: | +3.3, +5, +12 V |
| Power Capacity: | 1000 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83.3 A ¦ +5VSB - 3 A |
| Efficiency: | 90% |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Gold |
| Miscellaneous | |
| Included Accessories: | Cable ties, mounting screw |
| Cables Included: | AC input cable ¦ Power 24 pin ATX modular cable 61 cm ¦ 16-pin 12VHPWR power cable 65 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 3 x 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 65 cm ¦ 4 x power 15 pin SATA cable 80 cm ¦ 2 x 4 pin internal power cable 75 cm |
| MTBF: | 100,000 hours |
| Cooling System: | 140 mm fan |
| Features: | Fully modular, fluid dynamic bearing cooling fan, Zero RPM fan mode, side connections, Modern Standby compatible, LLC resonant converter technology, DC-DC technology, overpower protection, over voltage protection, over current protection, overheat protection, short-circuit protection |
| Compliant Standards: | EN 55032:2015+A11:2020, EMC, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019+A1:2021, EN IEC 62368-1:2020+A11:2020, EN/IEC 63000:2018, LVD, RoHS |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 10 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 18 cm |
| Height: | 8.6 cm |
| Weight: | 1.9 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 21.4 cm |
| Shipping Depth: | 30.2 cm |
| Shipping Height: | 12.9 cm |
| Shipping Weight: | 3.8 kg |
CORSAIR RMx SHIFT series fully modular power supplies boast a revolutionary patent-pending side cable interface to keep all your connections within easy reach, for exceptionally convenient 80 PLUS Gold efficient power.
- Side mounted connections
- ATX 3.0 certified
- CORSAIR Type 5 micro-fit connectors
- 140 mm fan with zero RPM mode support
- 80 PLUS Gold certified
- 105°C-rated capacitors
The technical details come from 3rd party. edgemo is not responsible for any errors.
