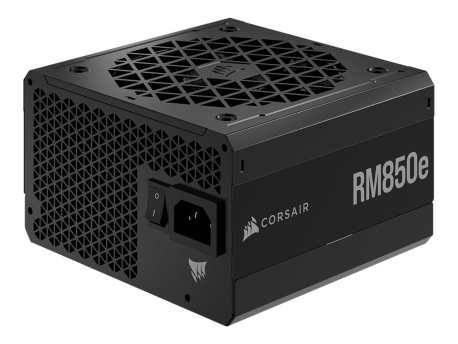

CORSAIR RMe Series RM850e - power supply - 850 Watt

SKU CP-9020263-EU
Product Description:CORSAIR RMe Series RM850e - power supply - 850 Watt
Device Type:Power supply - internal
Specification Compliance:ATX12V 3.0/ EPS12V
80 PLUS Certification:80 PLUS Gold
Weight:1.519 kg
Localisation:Europe
Input Voltage:AC 100-240 V
12-05-2025
  • Specifications
  • Description
General
Device Type:Power supply - internal
Specification Compliance:ATX12V 3.0/ EPS12V
PSU Form Factor:ATX
Localisation:Europe
Power Device
Input Voltage:AC 100-240 V
Frequency Required:47 - 63 Hz
Power Output Connectors Details:1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 7 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 12VHPWR
Output Voltage:+3.3, +5, +12 V
Power Capacity:850 Watt
Output Current:+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 70.8 A ¦ +5VSB - 3 A
Efficiency:90%
Modular Cable Management:Yes
80 PLUS Certification:80 PLUS Gold
Miscellaneous
Cables Included:ATX power cable 61 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm ¦ Power 15 pin SATA cable 80 cm ¦ Power 15 pin SATA cable 80 cm ¦ AC input cable - external ¦ 16-pin 12VHPWR power cable 65 cm ¦ 4 pin internal power cable 75 cm
MTBF:100,000 hours
Cooling System:120 mm fan
Features:Zero RPM fan mode, fully modular, Modern Standby compatible, DC-DC technology, rifle bearing cooling fan, LLC Half Bridge Topology
Manufacturer Warranty
Service & Support:Limited warranty - 7 years
Dimensions & Weight
Width:15 cm
Depth:14 cm
Height:8.6 cm
Weight:1.519 kg
vis mere
CORSAIR RMe series fully modular low-noise power supplies with dual 8-pin EPS12V connectors provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.
  • Fully modular cabling
  • Tuned for low noise operation
  • Technology and reliability
  • 80 Plus Gold-certified




The technical details come from 3rd party. edgemo is not responsible for any errors.
