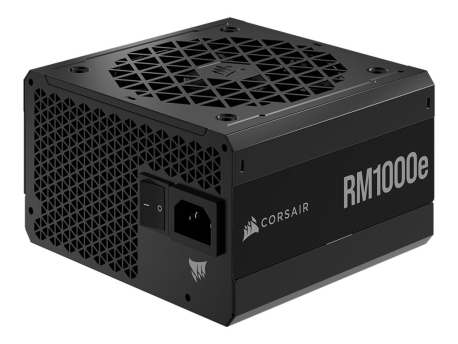

Printers & POSCORSAIR RMe Series RM1000e - power supply - 1000 Watt
SKU CP-9020264-EU
| Product Description: | CORSAIR RMe Series RM1000e - power supply - 1000 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 3.0/ EPS12V |
| 80 PLUS Certification: | 80 PLUS Gold |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
| Output Voltage: | +3.3, +5, +12 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 3.0/ EPS12V |
| PSU Form Factor: | ATX |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 7 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 12VHPWR |
| Output Voltage: | +3.3, +5, +12 V |
| Power Capacity: | 1000 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 83.3 A ¦ +5VSB - 3 A |
| Efficiency: | 90% |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Gold |
| Miscellaneous | |
| Cables Included: | ATX power cable 61 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 60 cm ¦ 2 x power 15 pin SATA cable 80 cm ¦ AC input cable - external ¦ 16-pin 12VHPWR power cable 65 cm ¦ 4 pin internal power cable |
| MTBF: | 100,000 hours |
| Cooling System: | 120 mm fan |
| Features: | DC-DC technology, Zero RPM fan mode, rifle bearing cooling fan, fully modular, Modern Standby compatible, LLC Half Bridge Topology |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 7 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 14 cm |
| Height: | 8.6 cm |
CORSAIR RMe series fully modular low-noise power supplies with ATX 3.0 and PCIe 5.0 compliance provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.
- Fully modular cabling
- ATX 3.0 certified
- Low noise operation in a compact size
- Technology and reliability
- 80 PLUS Gold-certified
The technical details come from 3rd party. edgemo is not responsible for any errors.
