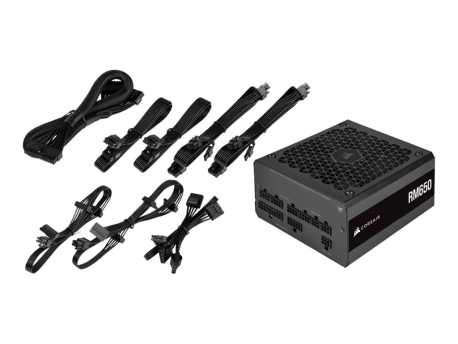

CORSAIR RM Series RM650 - power supply - 650 Watt
SKU CP-9020233-EU
Product Description: | CORSAIR RM Series RM650 - power supply - 650 Watt |
Device Type: | Power supply - internal |
Specification Compliance: | ATX12V 2.4/ EPS12V |
80 PLUS Certification: | 80 PLUS Gold |
Weight: | 1.5 kg |
Localisation: | Europe |
Input Voltage: | AC 100-240 V |
- Specifications
- Description
General | |
Device Type: | Power supply - internal |
Specification Compliance: | ATX12V 2.4/ EPS12V |
PSU Form Factor: | ATX |
Localisation: | Europe |
Power Device | |
Input Voltage: | AC 100-240 V |
Frequency Required: | 47 - 63 Hz |
Power Output Connectors Details: | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 4 PIN internal power ¦ 10 x 15 pin Serial ATA power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section |
Output Voltage: | +3.3, +5, ±12 V |
Power Capacity: | 650 Watt |
Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
Modular Cable Management: | Yes |
80 PLUS Certification: | 80 PLUS Gold |
Miscellaneous | |
MTBF: | 100,000 hours |
Cooling System: | 140 mm fan |
Features: | Sleeved cables, fully modular, rifle bearing cooling fan, DC-DC technology, Zero RPM fan mode, Modern Standby compatible |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 10 years |
Dimensions & Weight | |
Width: | 15 cm |
Depth: | 16 cm |
Height: | 8.6 cm |
Weight: | 1.5 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 26.7 cm |
Shipping Depth: | 21.4 cm |
Shipping Height: | 12.9 cm |
Shipping Weight: | 2.8 kg |
Modern Standby is an upcoming feature for Windows 10 that vastly improves your PC's sleep and wake functionality. The technology allows your system to wake from sleep more than twice as fast, as well as maintain a network connection during sleep to continue downloading updates and receive emails and notifications - just like your phone. Best of all, it does this with less overall power consumption.
The RM Series delivers power at up to 90% efficiency, lowering energy consumption, noise, temperatures, and your power bill. Using industrial-grade electrolytic capacitors, RM Series power supplies offer the unwavering power and long-term reliability you demand from a CORSAIR power supply. The RM Series' cooling fan doesn't spin until you need it, for near-silent operation at low and medium loads.
A 135mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load. When at low and medium loads, the fan stops spinning entirely until it's needed, resulting in virtually silent operation.
The RM Series delivers power at up to 90% efficiency, lowering energy consumption, noise, temperatures, and your power bill. Using industrial-grade electrolytic capacitors, RM Series power supplies offer the unwavering power and long-term reliability you demand from a CORSAIR power supply. The RM Series' cooling fan doesn't spin until you need it, for near-silent operation at low and medium loads.
A 135mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load. When at low and medium loads, the fan stops spinning entirely until it's needed, resulting in virtually silent operation.
- Ready for modern standby
- 80 Plus Gold certified
- 105°C-rated capacitors
- Zero RPM fan mode
- Tuned for low noise operation
- Compact size
- Fully modular cables
