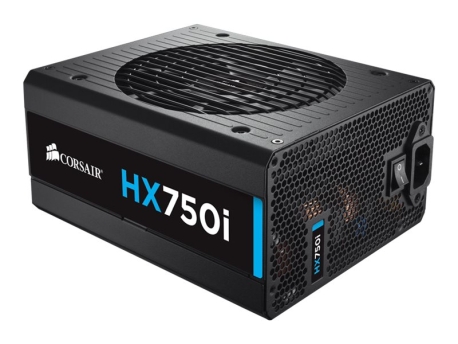

Printers & POSCORSAIR HXi Series HX750i - power supply - 750 Watt
SKU CP-9020072-EU
| Product Description: | CORSAIR HXi Series HX750i - power supply - 750 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Weight: | 3.227 kg |
| Localisation: | European Union |
| Input Voltage: | AC 120-240 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| PSU Form Factor: | ATX |
| Localisation: | European Union |
| Power Device | |
| Input Voltage: | AC 120-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 4 PIN internal power ¦ 12 x 15 pin Serial ATA power ¦ 2 x 4 PIN mini-power connector |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 750 Watt |
| Output Current: | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 62.5 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
| Efficiency: | 92% |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Miscellaneous | |
| Cables Included: | Power cable kit |
| Cooling System: | 140 mm fan |
| Features: | Corsair Link, fan speed monitoring, over current protection, over voltage protection, undervoltage protection, short-circuit protection, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular |
| Compliant Standards: | CSA, UL, TUV, C-Tick, cUL, CB, FCC, RoHS, WEEE, ICES, REACH, KC, China RoHS, RCM |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 10 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 18 cm |
| Height: | 8.6 cm |
| Weight: | 3.227 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 3.8455 kg |
HXi Series power supplies give you extremely tight voltage control, virtually silent operation, and a fully modular cable set. With all Japanese 105 °C capacitors, they're a great choice for high performance PCs where reliability is essential. 80 PLUS Platinum efficiency reduces operating cost and excess heat, and together with Zero RPM Fan Mode technology, gives you virtually silent operation.
With Corsair Link Digital support, you can monitor power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop. And, the fully modular, low profile cable set makes builds and upgrades easy, with clean, great-looking results.
With Corsair Link Digital support, you can monitor power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop. And, the fully modular, low profile cable set makes builds and upgrades easy, with clean, great-looking results.
- Corsair Link Integration for monitoring performance and adjustment of fan speed and multi-rail/single rail mode
- 80 PLUS Platinum efficiency, delivering 92% energy efficiency at real world load conditions
- ZeroRPM mode for fanless operation at low loads and outstanding noise reduction
- 140 mm thermally controlled fluid dynamic bearing fan spins up as needed
- Fully Modular low profile cables for easy installation, less clutter, and helps maximize airflow through your computer's chassis
- Fan self-test switch to determine fan functionality even before installation
- Over-voltage protection, under-voltage protection, and short circuit protection, over power protection, over temperature protection provide maximum safety to your critical system components
The technical details come from 3rd party. edgemo is not responsible for any errors.
