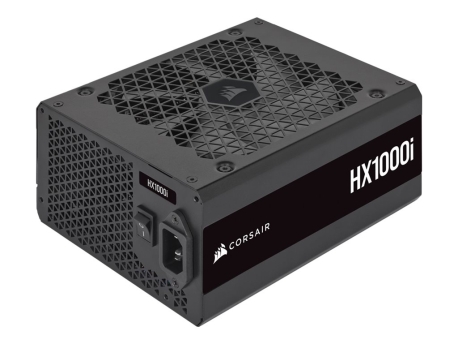

CORSAIR HXi Series HX1000i - power supply - ultra-low noise - 1000 Watt
SKU CP-9020259-EU
Product Description: | CORSAIR HXi Series HX1000i - power supply - ultra-low noise - 1000 Watt |
Device Type: | Power supply - internal |
Specification Compliance: | ATX12V 3.0/ EPS12V |
80 PLUS Certification: | 80 PLUS Platinum |
Weight: | 3.71 kg |
Localisation: | Europe |
Input Voltage: | AC 100-240 V |
- Specifications
- Description
General | |
Device Type: | Power supply - internal |
Specification Compliance: | ATX12V 3.0/ EPS12V |
PSU Form Factor: | ATX |
Localisation: | Europe |
Power Device | |
Input Voltage: | AC 100-240 V |
Frequency Required: | 47 - 63 Hz |
Power Output Connectors Details: | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x power 8 pin EPS12V ¦ 4 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 12VHPWR ¦ 1 x 10 pin USB-C |
Output Voltage: | +3.3, +5, +12 V |
Power Capacity: | 1000 Watt |
Output Current: | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83.3 A ¦ +5VSB - 3 A |
Efficiency: | 92% |
Modular Cable Management: | Yes |
80 PLUS Certification: | 80 PLUS Platinum |
Miscellaneous | |
Included Accessories: | Cable ties, screws |
Cables Included: | Power 24 pin ATX modular cable - external - 61 cm ¦ 2 x power 8 pin EPS12V modular cable - external - 65 cm ¦ 16-pin 12VHPWR to 2x8 pin PCI Express power adapter - external - 65 cm ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable - external - 77.5 cm ¦ 8 x Serial ATA cable - external - 80 cm ¦ 8 x parallel cable - external - 75 cm ¦ USB-C to 10-1 pin cable - external - 52.5 cm |
MTBF: | 100,000 hours |
Cooling System: | 140 mm fan |
Features: | Fan speed monitoring, fluid dynamic bearing cooling fan, magnetic levitation bearing cooling fan, fully modular, Zero RPM fan mode, Cybenetics Platinum, High Quality Capacitor, Cybenetics A, Multi-GPU Technologies Supported |
Software / System Requirements | |
Software Included: | CORSAIR iCUE |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 10 years |
Dimensions & Weight | |
Weight: | 3.71 kg |
HXi Series power supplies give you extremely tight voltage control, virtually silent operation, and a fully modular cable set. With all Japanese 105 °C capacitors, they're a great choice for high performance PCs where reliability is essential. 80 PLUS Platinum efficiency reduces operating cost and excess heat, and together with Zero RPM Fan Mode technology, gives you virtually silent operation.
With Corsair Link Digital support, you can monitor power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop. And, the fully modular, low profile cable set makes builds and upgrades easy, with clean, great-looking results.
With Corsair Link Digital support, you can monitor power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop. And, the fully modular, low profile cable set makes builds and upgrades easy, with clean, great-looking results.
- Corsair Link Integration for monitoring performance and adjustment of fan speed and multi-rail/single rail mode
- 80 PLUS Platinum efficiency, delivering 92% energy efficiency at real world load conditions
- ZeroRPM mode for fanless operation at low loads and outstanding noise reduction
- 140 mm thermally controlled fluid dynamic bearing fan spins up as needed
- Fully Modular low profile cables for easy installation, less clutter, and helps maximize airflow through your computer's chassis
- Fan self-test switch to determine fan functionality even before installation
- Over-voltage protection, under-voltage protection, and short circuit protection, over power protection, over temperature protection provide maximum safety to your critical system components
