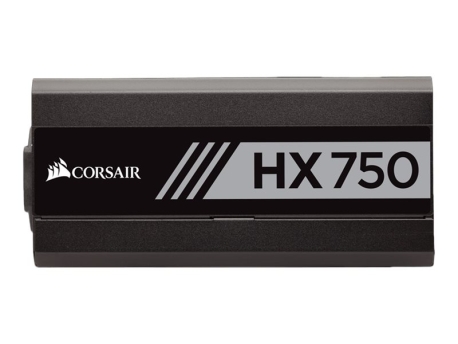

Printers & POSCORSAIR HX Series HX750 - power supply - 750 Watt
SKU CP-9020137-EU
| Product Description: | CORSAIR HX Series HX750 - power supply - 750 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Weight: | 1.92 kg |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| PSU Form Factor: | ATX |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 750 Watt |
| Output Current: | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 62.5 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Miscellaneous | |
| Included Accessories: | Case badge, cable ties, mounting kit |
| Cables Included: | Power cable kit |
| Cooling System: | 135 mm fan |
| Features: | Sleeved cables, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, temperature controlled fan, Zero RPM fan mode, fluid dynamic bearing cooling fan, switchable single/multi 12V rails, temperature sensor, fully modular |
| Compliant Standards: | CSA, UL, TUV, C-Tick, cUL, CB, FCC, RoHS, WEEE, ICES, REACH, KC, China RoHS, RCM, CU |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 10 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 18 cm |
| Height: | 8.6 cm |
| Weight: | 1.92 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 21.4 cm |
| Shipping Depth: | 33.8 cm |
| Shipping Height: | 13.4 cm |
| Shipping Weight: | 3.77 kg |
CORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they're a great choice for high performance PCs where reliability is essential.
- Quiet, efficient operation
- 100% Japanese 105 °C capacitors
- Zero RPM fan mode
- Power in your hands
- Easy installation
The technical details come from 3rd party. edgemo is not responsible for any errors.
