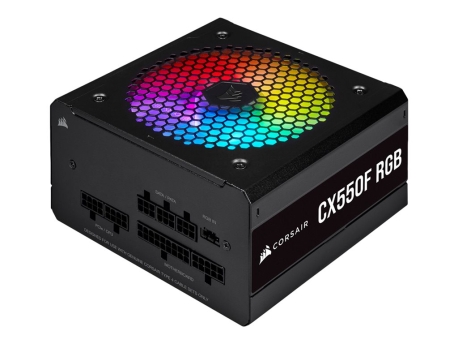

Printers & POSCORSAIR CX Series CX550F RGB - power supply - 550 Watt
SKU CP-9020216-EU
| Product Description: | CORSAIR CX Series CX550F RGB - power supply - 550 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| 80 PLUS Certification: | 80 PLUS Bronze |
| Weight: | 1.8 kg |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| PSU Form Factor: | ATX |
| Colour: | Black |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 7 x 15 pin Serial ATA power |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 550 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 45.8 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency: | 88% |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Bronze |
| Miscellaneous | |
| Included Accessories: | Cable ties |
| Cables Included: | 2 x RGB sync cable - external |
| MTBF: | 100,000 hours |
| Cooling System: | 120 mm fan |
| Features: | RGB backlit, Corsair iCUE, Corsair Link, fully modular, DC-DC technology |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 14 cm |
| Height: | 8.6 cm |
| Weight: | 1.8 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 30.2 cm |
| Shipping Depth: | 18.4 cm |
| Shipping Height: | 12.9 cm |
| Shipping Weight: | 2.03 kg |
CORSAIR CX550F RGB Series fully modular power supplies deliver reliable 80 PLUS Bronze efficient power to your system, alongside vibrant customizable lighting from a 120mm RGB fan and a clean aesthetic.
- Brilliant lighting, intelligently controlled
- Efficient, fully modular power
- Optimized for low noise
- Advanced technology and reliability
- Compact 140mm long casing
- Fully modular
The technical details come from 3rd party. edgemo is not responsible for any errors.
