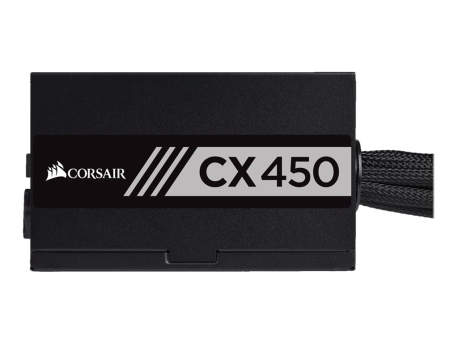

Printers & POSCORSAIR CX Series CX450 - power supply - 450 Watt
SKU CP-9020120-EU
| Product Description: | CORSAIR CX Series CX450 - power supply - 450 Watt |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| 80 PLUS Certification: | 80 PLUS Bronze |
| Weight: | 1.71 kg |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| PSU Form Factor: | ATX |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 4 x 15 pin Serial ATA power |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 450 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 37.4 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
| 80 PLUS Certification: | 80 PLUS Bronze |
| Miscellaneous | |
| Cooling System: | 120 mm fan |
| Features: | Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, temperature controlled fan, rifle bearing cooling fan, non-modular |
| Compliant Standards: | UL, TUV, BSMI, cUL, CB, FCC, RoHS, WEEE, ICES, KC, EAC, RCM |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 14 cm |
| Height: | 8.6 cm |
| Weight: | 1.71 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 18.4 cm |
| Shipping Depth: | 26.4 cm |
| Shipping Height: | 9.6 cm |
| Shipping Weight: | 2.36 kg |
CX Series power supply units provide modern power supply technologies and 80 PLUS Bronze efficiency at a competitive price point. It is black with black cable sleeving and connectors and a thermally controlled 120mm fan. The LLC resonant topology with DC to DC ensures complete compatibility with all modern day PCs.
- Low noise
- Good looks
- Reliable and compatible
- Corsair engineering and quality control
- Ample connectors and long cables
- Large-diameter, thermally controlled fan
The technical details come from 3rd party. edgemo is not responsible for any errors.
