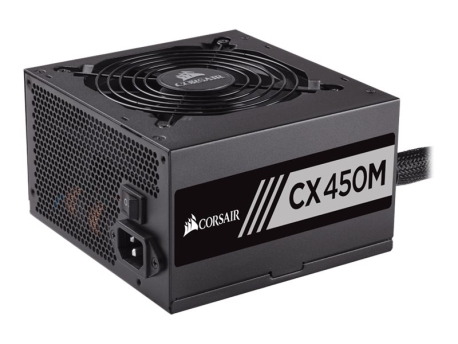

CORSAIR CX-M Series CX450M - 2015 Edition - power supply - 450 Watt
SKU CP-9020101-EU
Product Description: | CORSAIR CX-M Series CX450M - 2015 Edition - power supply - 450 Watt |
Device Type: | Power supply - internal |
Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
80 PLUS Certification: | 80 PLUS Bronze |
Weight: | 3.27 kg |
Localisation: | Europe |
Input Voltage: | AC 100-240 V |
- Specifications
- Description
General | |
Device Type: | Power supply - internal |
Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
PSU Form Factor: | ATX |
Colour: | Matte black |
Localisation: | Europe |
Power Device | |
Input Voltage: | AC 100-240 V |
Frequency Required: | 47 - 63 Hz |
Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 4 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
Output Voltage: | +3.3, +5, ±12 V |
Power Capacity: | 450 Watt |
Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 37.4 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
Modular Cable Management: | Yes |
80 PLUS Certification: | 80 PLUS Bronze |
Miscellaneous | |
Cooling System: | 120 mm fan |
Features: | Sleeved cables, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, temperature controlled fan, semi-modular |
Compliant Standards: | TUV, BSMI, CB, CCC, FCC, RoHS, WEEE, ICES, cTUVus, KC, China RoHS, RCM, CU-TR |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 5 years |
Dimensions & Weight | |
Width: | 15 cm |
Depth: | 14 cm |
Height: | 8.6 cm |
Weight: | 3.27 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 21.6 cm |
Shipping Depth: | 29 cm |
Shipping Height: | 13 cm |
Shipping Weight: | 3.53 kg |
The technical details come from 3rd party. edgemo is not responsible for any errors.
