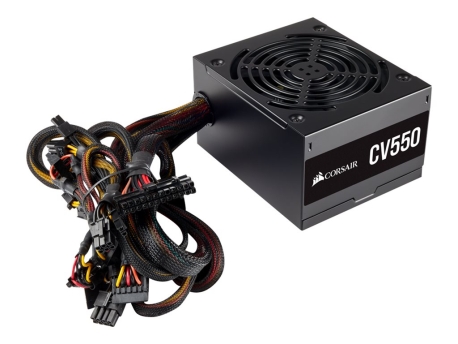

Printers & POSCORSAIR CV Series CV550 - power supply - 550 Watt
SKU CP-9020210-EU
| Product Description: | CORSAIR CV Series CV550 - power supply - 550 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.31/ EPS12V 2.92 |
| 80 PLUS Certification: | 80 PLUS Bronze |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
| Output Voltage: | +3.3, +5, ±12 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.31/ EPS12V 2.92 |
| PSU Form Factor: | ATX |
| Colour: | Black powder coat |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V ¦ 2 x PCI Express ¦ 7 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 550 Watt |
| Output Current: | +3.3V - 24 A ¦ +5V - 20 A ¦ +12V - 44 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| 80 PLUS Certification: | 80 PLUS Bronze |
| Miscellaneous | |
| MTBF: | 100,000 hours |
| Cooling System: | 120 mm fan |
| Features: | Sleeve bearing cooling fan, non-modular, single 12V rail |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 12.5 cm |
| Height: | 8.6 cm |
CORSAIR CV power supplies are ideal for powering your home or office PC, with incredible efficiency guaranteed to continuously deliver full wattage to your system.
- Continuous, reliable output
- Low-noise operation
- Compact design
The technical details come from 3rd party. edgemo is not responsible for any errors.
