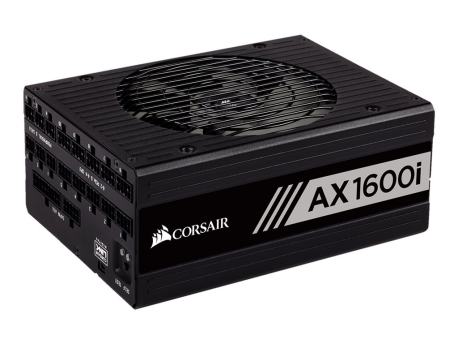

Printers & POSCORSAIR AX1600i - power supply - 1600 Watt
SKU CP-9020087-EU
| Product Description: | CORSAIR AX1600i - power supply - 1600 Watt |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| 80 PLUS Certification: | 80 PLUS Titanium |
| Weight: | 2.65 kg |
| Localisation: | Europe |
| Input Voltage: | AC 100-240 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 2.4/ EPS12V 2.92 |
| PSU Form Factor: | ATX |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 50 - 60 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 PIN mini-power connector |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 1600 Watt |
| Output Current: | +3.3V - 30 A ¦ +5V - 30 A ¦ +12V - 133.3 A ¦ -12V - 0.8 A ¦ +5VSB - 3.5 A |
| Efficiency: | 94%+ |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Titanium |
| Miscellaneous | |
| Included Accessories: | Touch fastener strap, micro USB cable, case badge, cable ties, mounting kit, cable bag, magnetic side labels |
| MTBF: | 100,000 hours |
| Cooling System: | 140 mm fan |
| Features: | Sleeved cables, Corsair Link Digital, over current protection, Zero RPM fan mode, fan speed control, fluid dynamic bearing cooling fan, manual self-test, Totem-pole PFC Gallium Nitride (GaN) transistors, fully modular |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 10 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 20 cm |
| Height: | 8.6 cm |
| Weight: | 2.65 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 39.8 cm |
| Shipping Depth: | 21.9 cm |
| Shipping Height: | 15.9 cm |
| Shipping Weight: | 5.15 kg |
The Corsair AX1600i is the ultimate digital ATX power supply, built using only the quality components and state-of-the-art gallium nitride transistors to deliver higher efficiency.
- 1600 W of ultimate power
- Top tier components
- Consumer PSU with gallium nitride transistors
- World-class electrical performance
- DB cooling fan
- Zero RPM fan mode
The technical details come from 3rd party. edgemo is not responsible for any errors.
