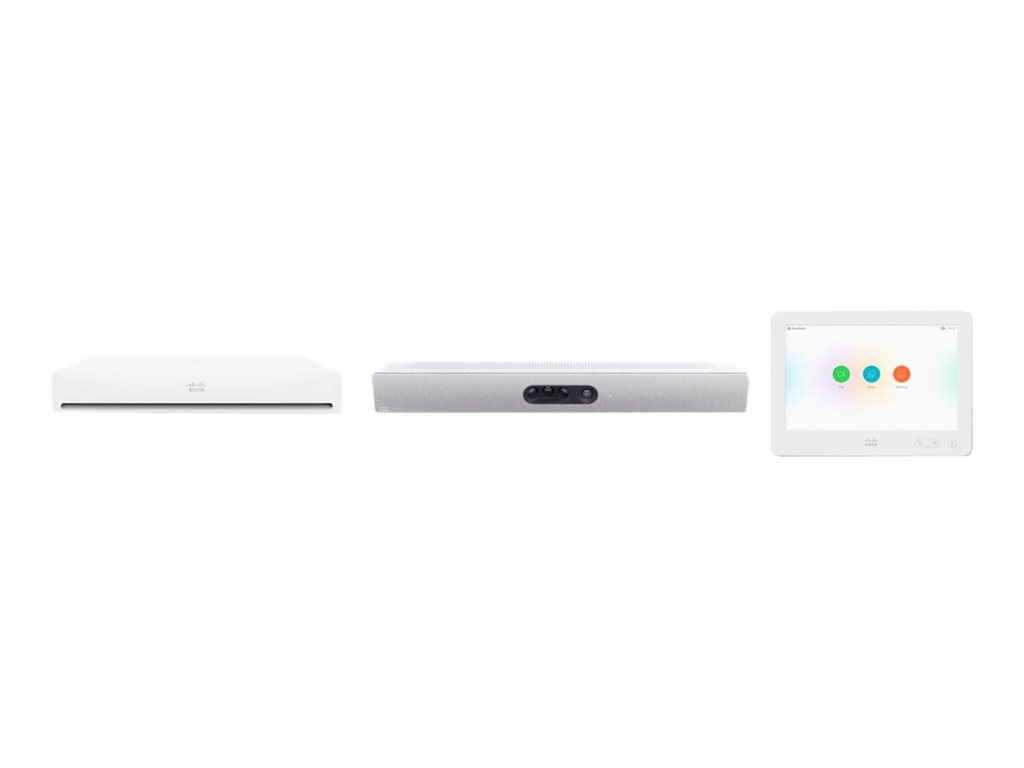

Cisco Webex Room Kit Pro - GPL - video conferencing kit
SKU CS-KITPRO-K9
Product Description: | Cisco Webex Room Kit Pro - GPL - video conferencing kit |
Device Type: | Video conferencing kit |
VoIP Protocols: | H.323 |
Codec: | H.264, G.711, G.722, G.729, G.729ab, G.722.1, AAC-LD, Opus |
Digital Signaling Protocol: | H.323, SIP, H.245, H.460.18, H.460.19, BFCP |
Data Compression Protocol: | G.711, G.722, H.263, H.264, G.729AB, G.722.1 |
Features: | DTMF decoding |
- Specifications
- Description
General | |
Device Type: | Video conferencing kit |
VoIP Protocols: | H.323 |
Voice Codecs: | G.711, G.722, G.729, G.729ab, G.722.1, AAC-LD, Opus |
Video Codecs: | H.264 |
Quality of Service: | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
IP Address Assignment: | DHCP |
Security: | IEEE 802.1X, H.235 v3 |
Network Protocols: | HTTP, DNS, HTTPS, NTP |
Modem | |
Digital Signaling Protocol: | H.323, SIP, H.245, H.460.18, H.460.19, BFCP |
Data Compression Protocol: | G.711, G.722, H.263, H.264, G.729AB, G.722.1 |
Features: | DTMF decoding |
Video Input | |
Type: | Digital video camera (colour) - external |
Interface Type: | HDMI |
Digital Video Capture Resolution: | 5120 x 2880 |
Video Output | |

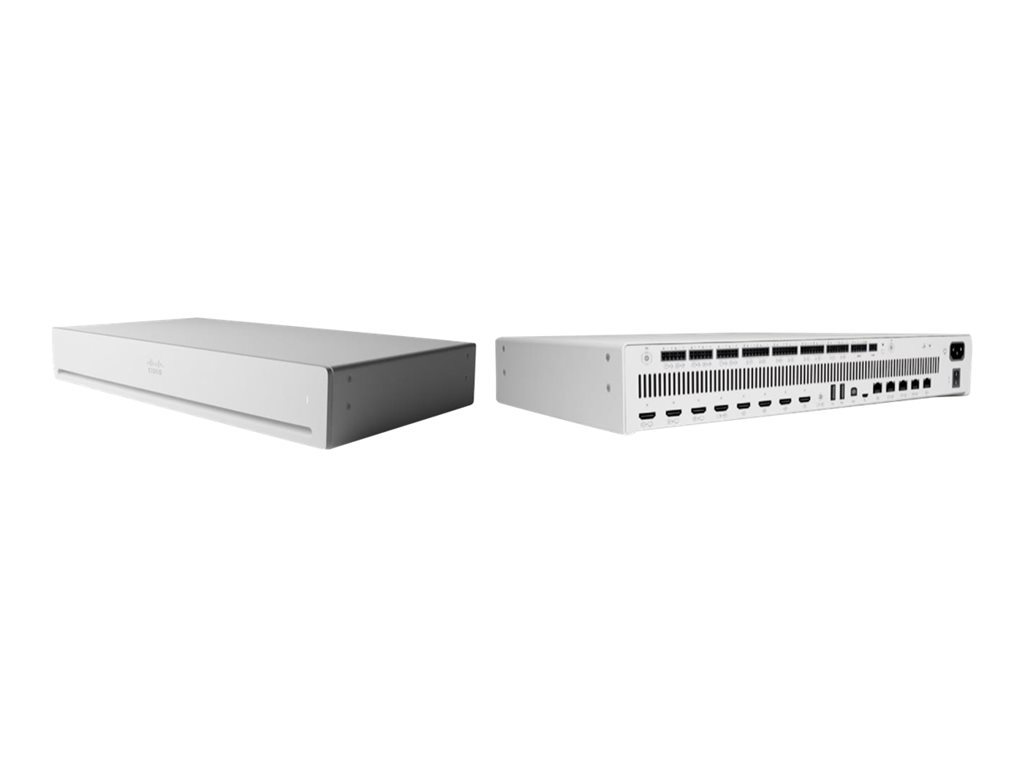

Type: | Codec board - rack-mountable |
Supported Display Graphics: | HDTV (1920x1080), HD (1280 x 720), UHD (3840 x 2160) |
Digital Video Standard: | High-Definition Multimedia Interface (HDMI) |
Input Device | |
Type: | 10" touchscreen |
Connectivity Technology: | Wired |
Networking | |
Connectivity Technology: | Wireless, wired |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
Network / Transport Protocol: | TCP/IP, NTP, DHCP, DNS |
Features: | IPv6 support, Quality of Service (QoS), SSH support, URI Dialing, administrator's password, dual band, Network Timing Protocol (NTP), 2x2 MU-MIMO technology, CEC 2.0 support |
Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Expansion / Connectivity | |
Interfaces: | 6 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 3 x audio / video - HDMI output ¦ 3 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ 2 x USB ¦ 1 x USB ¦ 8 x microphone - input ¦ 6 x audio - output |
The Cisco Webex Room Kit Pro provides a powerful and flexible platform for creating the ultimate video collaboration experience - large, custom video rooms, including boardrooms, auditoriums, and purpose-built rooms for vertical applications. The Room Kit Pro is an advanced product built with integrators in mind and enabling flexibility and creativity for customized video collaboration rooms that delight customers.
The Cisco Webex Room Kit Pro is video innovation bringing more intelligence and usability to your largest and specialized collaboration rooms and spaces. While others are still struggling to insert advanced features, such as speaker tracking, wireless sharing and 4K content, into their high-end products, Cisco is already proliferating these innovations to meeting rooms of all sizes in a cost-effective and simple way. With the Room Kit Pro, Cisco is helping customers experience smarter meetings, enable smarter presentations, and create smarter room and device integrations.
The Cisco Webex Room Kit Pro is video innovation bringing more intelligence and usability to your largest and specialized collaboration rooms and spaces. While others are still struggling to insert advanced features, such as speaker tracking, wireless sharing and 4K content, into their high-end products, Cisco is already proliferating these innovations to meeting rooms of all sizes in a cost-effective and simple way. With the Room Kit Pro, Cisco is helping customers experience smarter meetings, enable smarter presentations, and create smarter room and device integrations.
- Supports a wide range of network protocols and security standards for seamless integration
- Delivers clear video and audio quality with advanced codecs and a 10" touchscreen
- Flexible connectivity with both wired and wireless options, including dual-band Wi-Fi
- Capable of high-resolution video capture and supports multiple display graphics standards
