Cisco Webex Room Kit Plus - video conferencing kit
SKU CS-KITPLUS-K9
Product Description: | Cisco Webex Room Kit Plus - video conferencing kit |
Device Type: | Video conferencing kit |
VoIP Protocols: | H.323 |
Codec: | H.264, G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Digital Signaling Protocol: | H.323, SIP, H.460.18, H.460.19, BFCP |
Data Compression Protocol: | H.264 |
Features: | DTMF decoding |
- Specifications
- Description
General | |
Device Type: | Video conferencing kit |
VoIP Protocols: | H.323 |
Voice Codecs: | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Video Codecs: | H.264 |
Quality of Service: | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
IP Address Assignment: | DHCP |
Security: | IEEE 802.1X, H.235 v3 |
Network Protocols: | HTTP, DNS, HTTPS, NTP |
Dimensions & Weight Details: | Camera - Width 95 cm Depth 10.3 cm Height 12 cm Weight 4.8 kg ¦ Main system - Width 35.9 cm Depth 14.3 cm Height 4.3 cm Weight 1.77 kg |
Modem | |
Digital Signaling Protocol: | H.323, SIP, H.460.18, H.460.19, BFCP |
Data Compression Protocol: | H.264 |
Features: | DTMF decoding |
Video Input | |
Type: | Digital video camera (colour) - external |
Interface Type: | HDMI |
Digital Video Capture Resolution: | 3840 x 2160, 1080p |
Video Output | |
Supported Display Graphics: | UHD (3840 x 2160) |
Digital Video Standard: | High-Definition Multimedia Interface (HDMI) |
Audio Input | |
Type: | 6 microphones - integrated |
Audio Output | |
Type: | Speaker(s) |
Frequency Response: | 70 - 20000 Hz |
Input Device | |
Type: | 10" touchscreen |
Networking | |
Connectivity Technology: | Wireless, wired |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
Network / Transport Protocol: | NTP, DHCP, DNS |
Features: | DiffServ support, wall mountable, Quality of Service (QoS), SSH support, Audio Return Channel (ARC), 4K resolution support, security lock slot (cable lock sold separately), automatic gain control (AGC), 802.1x authentication, URI Dialing, administrator's password |
Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Expansion / Connectivity | |
Interfaces: | 2 x display / video - HDMI input - 19 pin HDMI Type A ¦ 1 x display / video - HDMI input - 19 pin HDMI Type A ¦ 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 1 x audio - output - RCA ¦ 3 x audio - input - mini-phone 3.5 mm ¦ 3 x network - RJ-45 ¦ 1 x USB 2.0 |
Miscellaneous | |
Cables Included: | 1 x network cable - 8 m |
Mounting Kit: | Included |
Compliant Standards: | AES, RoHS, WEEE, CEC, Directive 2002/96/EC, Directive 2011/65/EU, FCC CFR47 Part 15 B Class A, Directive 2014/35/EU, Directive 2014/30/EU, Directive 2014/53/EU |
Power | |
Power Device: | Power supply - external |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Consumption Operational: | 70 Watt |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 90 days ¦ Limited warranty - advance parts replacement - 10 days |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 10 - 90% |
Webex Room Kit Plus delivers the unmatched video and audio experience customers have come to expect from Cisco. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations - further removing the barriers to usage and deployment of video in medium to large-sized rooms.

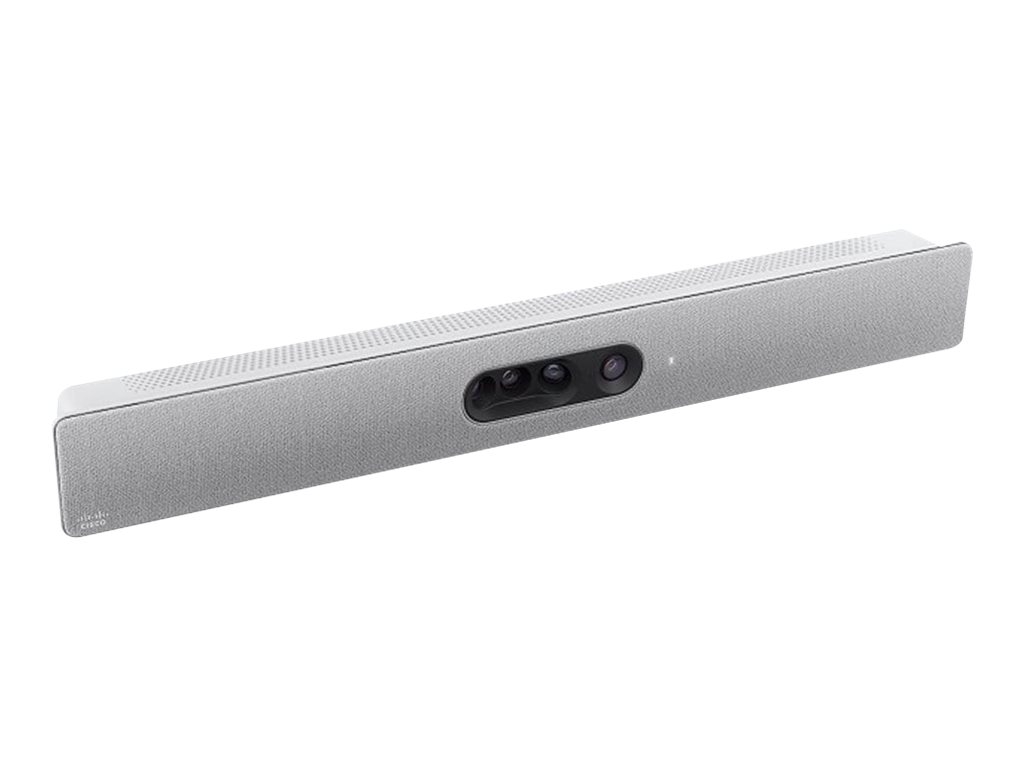

The Room Kit Plus - comprising a powerful codec, a quad-camera bar with integrated speakers and microphones and the intelligent Room Navigator control panel - is ideal for rooms that seat up to 14 people. It offers sophisticated camera technologies that bring speaker-tracking and auto-framing capabilities to medium to large-sized rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your conference rooms and spaces - whether registered on the premises or to the Webex cloud service.
The Room Kit Plus - comprising a powerful codec, a quad-camera bar with integrated speakers and microphones and the intelligent Room Navigator control panel - is ideal for rooms that seat up to 14 people. It offers sophisticated camera technologies that bring speaker-tracking and auto-framing capabilities to medium to large-sized rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your conference rooms and spaces - whether registered on the premises or to the Webex cloud service.
- Bringing more intelligence to medium to large-sized rooms
- An affordable way to purchase hardware
- Smart meetings
- Smart presentations
- Smart rooms
- Audio-visual integration
- Registration flexibility
The technical details come from 3rd party. edgemo is not responsible for any errors.
