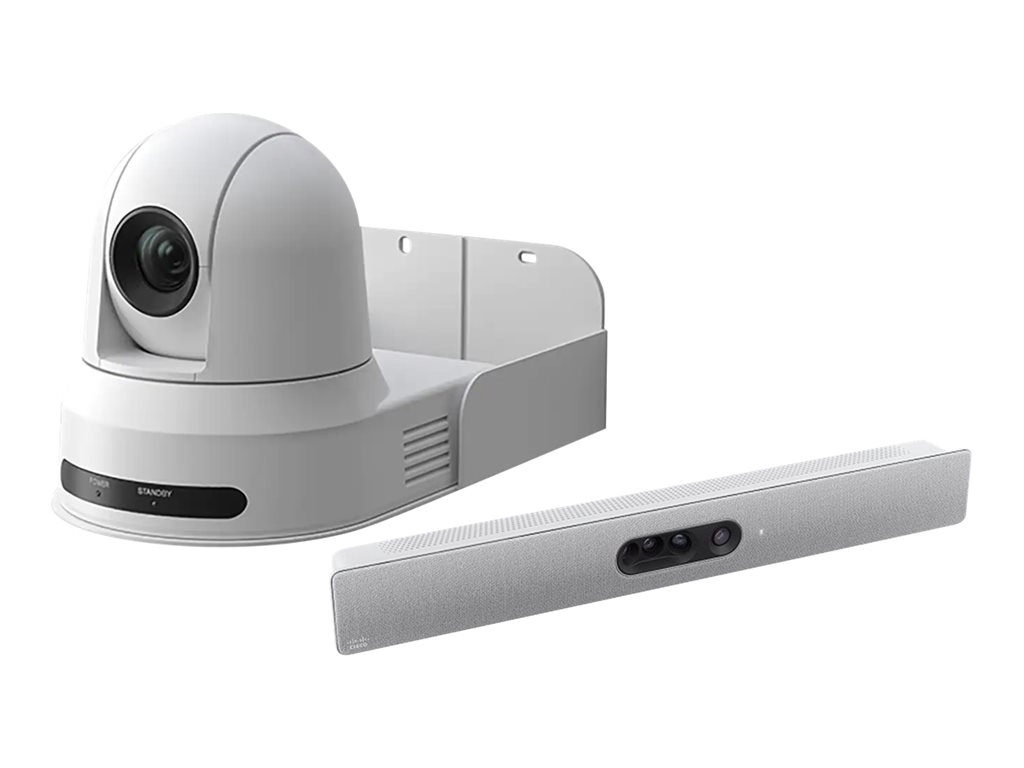

Cisco Webex Room Kit Plus PTZ - video conferencing kit
SKU CS-KITPLPTZ4K-K9
Product Description: | Cisco Webex Room Kit Plus PTZ - video conferencing kit |
Device Type: | Video conferencing kit |
VoIP Protocols: | H.323 |
Codec: | H.264, G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Digital Signaling Protocol: | H.323, SIP, H.460.18, H.460.19, BFCP |
Data Compression Protocol: | H.264 |
Features: | DTMF decoding |
- Specifications
- Description
General | |
Device Type: | Video conferencing kit |
VoIP Protocols: | H.323 |
Voice Codecs: | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Video Codecs: | H.264 |
Quality of Service: | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
IP Address Assignment: | DHCP |
Security: | IEEE 802.1X, H.235 v3 |
Network Protocols: | HTTP, DNS, HTTPS, NTP |
Dimensions & Weight Details: | Camera - Width 15.8 cm Depth 20 cm Height 17.7 cm Weight 1.7 kg ¦ Main system - Width 35.9 cm Depth 14.3 cm Height 4.3 cm Weight 1.77 kg |
Modem | |
Digital Signaling Protocol: | H.323, SIP, H.460.18, H.460.19, BFCP |
Data Compression Protocol: | H.264 |
Features: | DTMF decoding |
Video Input | |
Type: | Digital video camera (colour) - external |
Interface Type: | HDMI |
Digital Video Capture Resolution: | 3840 x 2160, 1920 x 1080 |
Optical Zoom: | 20 |
Digital Zoom: | 12 |
Camera Mechanical Design: | Pan / tilt / zoom |
Features: | -170° / +170° pan, -20° / +20° tilt, 70° field of view (horizontal), F 2.0-3.8 lens aperture, Auto Focus, auto white balance, automatic brightness adjustment, manual brightness adjustment, manual white balance |
Video Output | |
Supported Display Graphics: | UHD (3840 x 2160) |
Digital Video Standard: | High-Definition Multimedia Interface (HDMI) |
Networking | |
Connectivity Technology: | Wireless, wired |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
Network / Transport Protocol: | NTP, DHCP, DNS |
Features: | DiffServ support, wall mountable, Quality of Service (QoS), SSH support, Audio Return Channel (ARC), 4K resolution support, security lock slot (cable lock sold separately), automatic gain control (AGC), 802.1x authentication, URI Dialing, administrator's password |
Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Expansion / Connectivity | |
Interfaces: | 2 x display / video - HDMI input - 19 pin HDMI Type A ¦ 1 x display / video - HDMI input - 19 pin HDMI Type A ¦ 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio - output - mini-phone stereo 3.5 mm ¦ 3 x audio - input - mini-phone 3.5 mm ¦ 3 x network - RJ-45 ¦ 1 x USB 2.0 |
Miscellaneous | |
Compliant Standards: | Directive 2002/96/EU, Directive 2011/65/EU, Directive 2014/30/EU, EMC, EN 55032 Class A, EN 55035, EN 62368-1, FCC CFR47 Part 15 B, NRTL, RoHS, WEEE |
Power | |
Power Device: | Power supply - external |
Voltage Required: | AC 100-240 V (50/60 Hz) |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 90 days ¦ Limited warranty - advance parts replacement - 10 days |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 20 - 80% RH |
The Cisco Webex Room Kit Plus PTZ (pan-tilt-zoom) integrator package is a powerful collaboration solution that integrates with flat-panel displays to bring more intelligence and versatility to your collaboration spaces. This package combines the performance of the Cisco Webex Room Kit Plus Codec (Codec Plus) and the flexibility of the pan-tilt-zoom camera to offer maximum flexibility in scenarios where you need special camera placement, objects close up, or wide pan-tilt-zoom capability.
The Room Kit Plus PTZ integrator package delivers an advanced audio and video experience that customers have come to expect from Cisco. In addition, the package provides flexibility for rooms that can benefit from a pan-tilt-zoom camera. The PTZ camera delivers 12x optical and 12x digital zoom. It also offers a high level of flexibility for custom and specialized integrations.
The Room Kit Plus PTZ integrator package delivers an advanced audio and video experience that customers have come to expect from Cisco. In addition, the package provides flexibility for rooms that can benefit from a pan-tilt-zoom camera. The PTZ camera delivers 12x optical and 12x digital zoom. It also offers a high level of flexibility for custom and specialized integrations.
- Powerful imaging with one motorized, high-quality camera
- 12x optical and 12x digital zoom
- Easily controlled by the Cisco Touch 10 control unit or with a Cisco Webex Teams app-enabled device
- End-to-end security
- Supports dual screens for video and content
- Supports dual content sources for local meetings
- 4K content sharing (local 30 fps, remote 5 fps)
- Wired or wireless content sharing
- Automatic screen and display integration through HDMI Consumer Electronics Control (CEC)
- Supports Wi-Fi
- In-room control: Control peripherals such as lights and blinds through the Touch 10
- Flexibility to register on the premises or to Cisco Webex in the cloud
- Hardware is optimized to run on a cloud platform, for great experiences in shared rooms and spaces with easy access to hosted conferences
