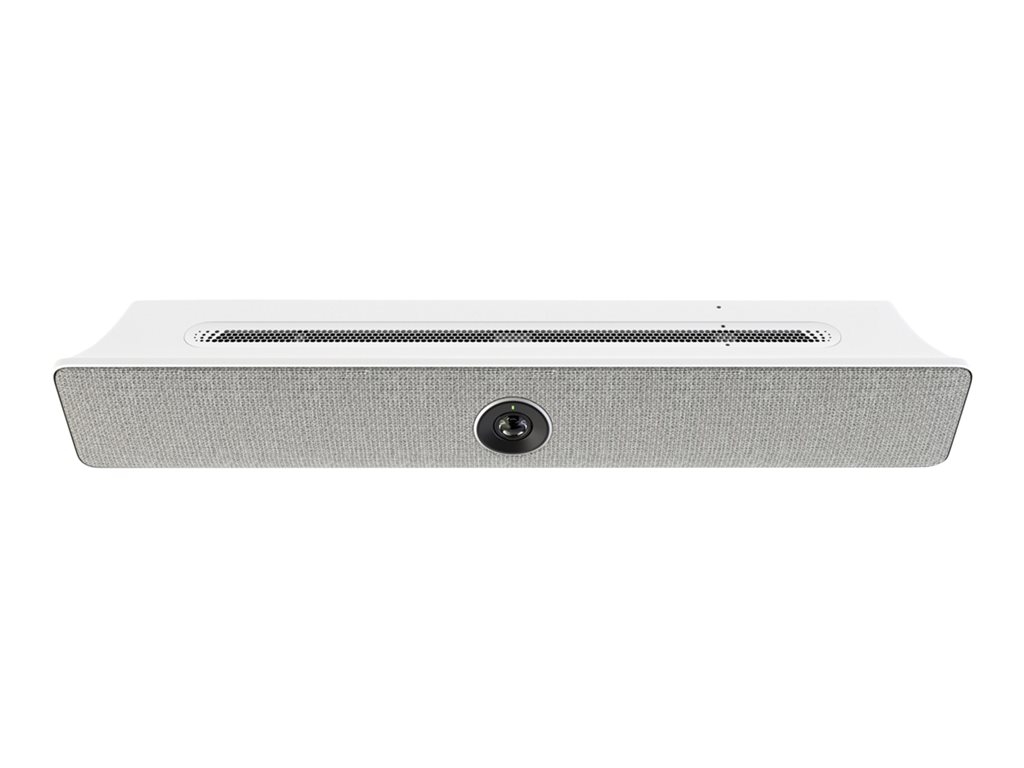

Cisco Webex Room Kit Mini - video conferencing kit
SKU CS-KIT-MINI-K9
Product Description: | Cisco Webex Room Kit Mini - video conferencing kit |
Device Type: | Video conferencing kit |
VoIP Protocols: | H.323 |
Codec: | H.264, H.265, H.239, G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Digital Signaling Protocol: | SIP, H.245, H.460.18, H.460.19, BFCP |
Data Compression Protocol: | G.711, G.722, H.263, H.264, G.722.1 |
Video Input: | Digital video camera - HDMI |
- Specifications
- Description
General | |
Device Type: | Video conferencing kit |
VoIP Protocols: | H.323 |
Voice Codecs: | G.711, G.722, G.729, G.722.1, AAC-LD, Opus |
Video Codecs: | H.264, H.265, H.239 |
Quality of Service: | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
Network Protocols: | HTTP, DNS, HTTPS, NTP |
Dimensions & Weight Details: | Codec - Width 50 cm Depth 7.7 cm Height 8.1 cm Weight 1.5 kg |
Modem | |
Digital Signaling Protocol: | SIP, H.245, H.460.18, H.460.19, BFCP |
Data Compression Protocol: | G.711, G.722, H.263, H.264, G.722.1 |
Video Input | |
Type: | Digital video camera (colour) - integrated |
Interface Type: | HDMI |
Digital Video Capture Resolution: | 3840 x 2160 |
Video Modes: | 4K/1080p |
Digital Zoom: | 2 |
Features: | Face detection, automatic brightness adjustment, auto white balance, Auto Focus, 120° field of view |
Video Output | |
Type: | Codec board - external |
Supported Display Graphics: | HDTV (1920x1080), UHD (3840 x 2160) |
Digital Video Standard: | High-Definition Multimedia Interface (HDMI) |
Audio Input | |
Type: | Microphones - integrated |
Audio Output | |
Type: | Speaker(s) |
Audio Amplifier: | Integrated |
Output Power / Channel: | 24 Watt |
Frequency Response: | 70 - 20000 Hz |
Input Device | |
Type: | 10" touchscreen |
Connectivity Technology: | Wired |
Networking | |
Connectivity Technology: | Wireless, wired |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
Network / Transport Protocol: | NTP, DHCP, DNS, HTTP, HTTPs |
Features: | DiffServ support, IPv6 support, Quality of Service (QoS), SSH support, IPv4 support, Class of Service (CoS), automatic gain control (AGC), 802.1x authentication, URI Dialing, CEC 2.0 support |
Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Expansion / Connectivity | |
Interfaces: | 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x USB 2.0 ¦ 1 x USB-C - USB 2.0 |
Miscellaneous | |
Compliant Standards: | EMC, AES, RoHS, WEEE |
Power | |
Power Device: | Power supply |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Dimensions & Weight (Shipping) | |
Shipping Width: | 60.5 cm |
Shipping Depth: | 21.6 cm |
Shipping Height: | 32.6 cm |
Shipping Weight: | 3.2 kg |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 90% |
The Cisco Webex Room Kit Mini brings robust boardroom technology for your smallest spaces. A powerful 4K HD integrated video camera delivers intelligent views, with integrated microphones, speakers and automatic noise suppression for clear video conferences. Share presentations wired or wirelessly, and participate in whiteboarding sessions through the Cisco Webex Teams app.
- Smart meetings
- Smart presentations
- Smart rooms
- Built for cloud and premises
The technical details come from 3rd party. edgemo is not responsible for any errors.
