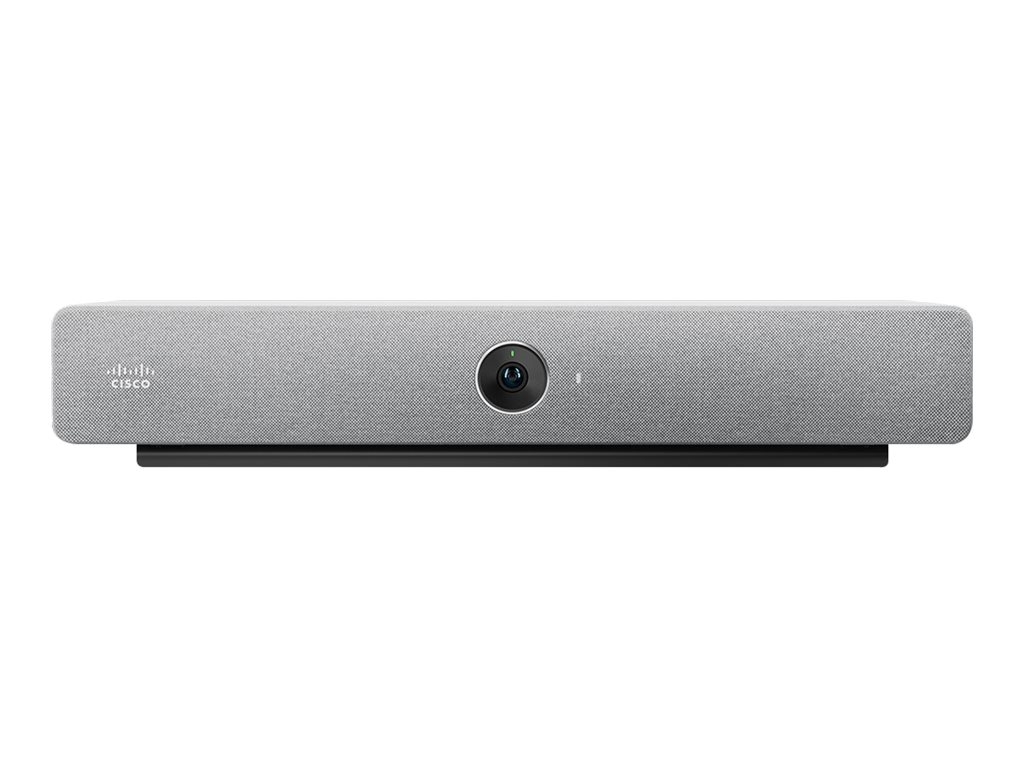

Printers & POSCisco Webex Room Bar - video conferencing device
SKU CS-BAR-W-K9
| Product Description: | Cisco Webex Room Bar - video conferencing device |
| Device Type: | Video conferencing device |
| VoIP Protocols: | SIP, H.245, H.323, SRTP |
| Codec: | H.263, H.264, H.239, G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Dimensions (WxDxH): | 53.4 cm x 6.4 cm x 8.2 cm |
| Weight: | 1.5 kg |
| Digital Signaling Protocol: | H.460.18, H.460.19, H.239, BFCP, SIP, H.245, H.323 |
- Specifications
- Description
| General | |
| Device Type: | Video conferencing device |
| VoIP Protocols: | SIP, H.245, H.323, SRTP |
| Voice Codecs: | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Video Codecs: | H.263, H.264, H.239 |
| Quality of Service: | IEEE 802.1Q (VLAN), IEEE 802.1p |
| IP Address Assignment: | DHCP |
| Security: | AES, H.323, TLS, IEEE 802.1X, Secure Shell (SSH), SRTP |
| Network Protocols: | NTP, IPv6, HTTP, HTTPS, TLS, Cisco Discovery Protocol (CDP), SSH, DNS, SRTP |
| Width: | 53.4 cm |
| Depth: | 6.4 cm |
| Height: | 8.2 cm |
| Weight: | 1.5 kg |
| Enclosure Colour: | First light |
| Modem | |
| Digital Signaling Protocol: | H.460.18, H.460.19, H.239, BFCP, SIP, H.245, H.323 |
| Data Compression Protocol: | H.263, H.264, G.711, G.722, G.722.1, G.729, H.239 |
| Video Input | |
| Type: | Digital video camera (colour) - integrated |
| Interface Type: | HDMI input, DisplayPort input, HDMI output |
| Digital Video Capture Resolution: | 3840 x 2160, 1920 x 1080 |
| Video Modes: | 1080/60p, 4K/30p |
| Digital Zoom: | 5 |
| Features: | 120° field of view (horizontal), 1/2.3 CMOS image sensor type, F 2.5 lens aperture, 95° field of view (vertical), face detection, speaker tracking, automatic brightness adjustment, auto white balance, fixed focus, 30Hz frame rate, Acoustic Echo Cancellation (AEC) |
| Audio Input | |
| Type: | 4-microphone array |
| Microphone Operation Mode: | Beamforming |
| Networking | |
| Connectivity Technology: | Wireless, wired |
| Data Link Protocol: | Bluetooth, Fast Ethernet, Gigabit Ethernet, Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Network / Transport Protocol: | NTP, DHCP, IPv6, HTTP, HTTPs, IPv4, DNS |
| Features: | Automatic gain control (AGC), VoIP support, Quality of Service (QoS), DTMF support, URI Dialing, Class of Service (CoS), DiffServ support, 2x2 MIMO technology |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1p |
| Expansion / Connectivity | |
| Interfaces: | 1 x USB-C / DisplayPort - 24 pin USB-C ¦ 1 x audio / video - HDMI input ¦ 2 x audio / video - HDMI output ¦ 1 x audio - line-in/microphone ¦ 1 x USB 2.0 ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 |
| Miscellaneous | |
| Included Accessories: | Wall mount |
| Compliant Standards: | CEC 2.0, AES-128, AES-256, Directive 2014/53/EU, Directive 2014/30/EU, Directive 2014/35/EU, Directive 2011/65/EU, Directive 2002/96/EU, NRTL, FCC CFR47 Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E, FCC |
| Power | |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational: | 20 Watt |
| Software / System Requirements | |
| Software Included: | RoomOS 11 or later |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 90 days |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 10 - 90% |
The Cisco Webex Room Bar is an advanced video conferencing device designed to transform your meeting experience. With its integrated 4-microphone array and beamforming technology, it captures audio clearly, ensuring every participant is heard loud and clear. The device supports video resolutions up to 4K/30p, providing lifelike video quality that makes remote meetings feel like face-to-face interactions.
Security is paramount in today's digital world, and the Cisco Webex Room Bar delivers with robust encryption and protection protocols including AES, SSH, and TLS, safeguarding your communications. Additionally, its versatile connectivity options, including HDMI, USB-C, and Ethernet, offer flexibility for various setup configurations. With a low power consumption of only 20 W, it's an energy-efficient choice for any organization. Choose the Cisco Webex Room Bar for a high-quality conferencing solution that meets the demands of modern businesses.
Security is paramount in today's digital world, and the Cisco Webex Room Bar delivers with robust encryption and protection protocols including AES, SSH, and TLS, safeguarding your communications. Additionally, its versatile connectivity options, including HDMI, USB-C, and Ethernet, offer flexibility for various setup configurations. With a low power consumption of only 20 W, it's an energy-efficient choice for any organization. Choose the Cisco Webex Room Bar for a high-quality conferencing solution that meets the demands of modern businesses.
- 4-microphone array with beamforming technology for clear audio pickup
- Supports up to 4K/30p video resolution for high-quality video conferencing
- Integrated with advanced security protocols including AES, SSH, and TLS
- Versatile connectivity options including HDMI, USB-C, and Ethernet
- Operates efficiently with a power consumption of only 20 W
The technical details come from 3rd party. edgemo is not responsible for any errors.
