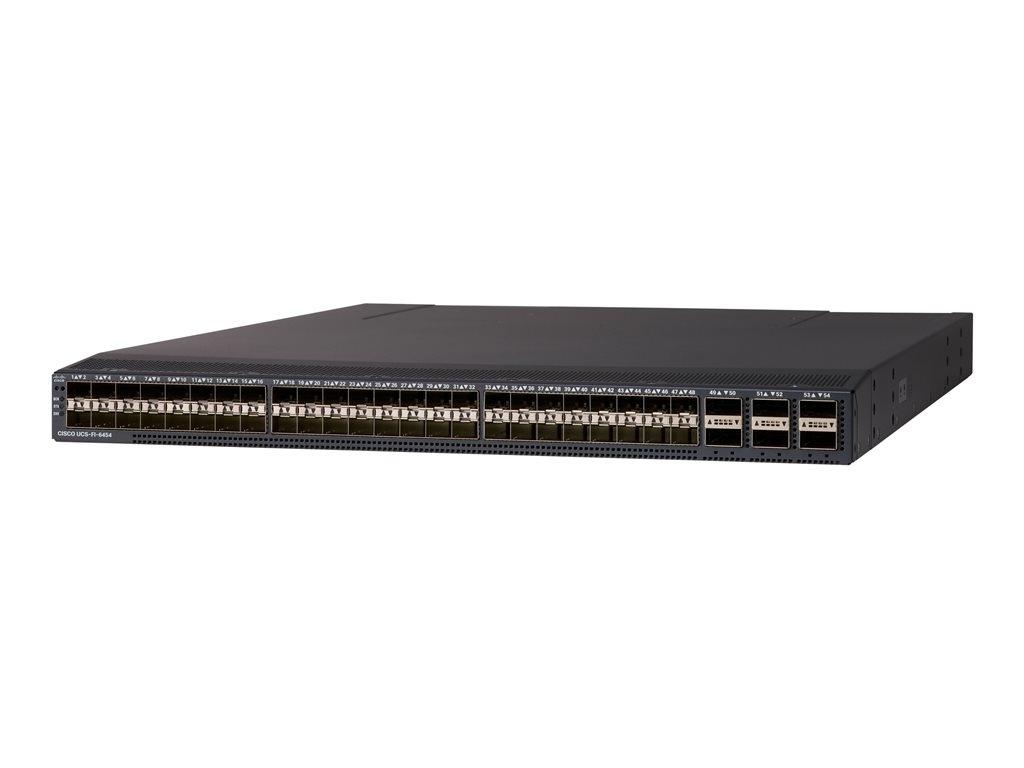

Printers & POSCisco UCS SmartPlay Select 6454 (Tracer) - switch - 54 ports - Managed - rack-mountable
SKU TR-SP-FI6454-2X
| Product Description: | Cisco UCS SmartPlay Select 6454 (Tracer) - switch - 54 ports - Managed - rack-mountable |
| Device Type: | Switch - 54 ports - Managed |
| Packaged Quantity: | 2 (specifications are for single item) |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Subtype: | 100 Gigabit Ethernet |
| Ports: | 36 x 10/25 Gigabit SFP28 + 4 x 1/10/25 Gigabit SFP28 + 6 x 40/100 Gigabit QSFP28 (uplink) + 8 x 10/25 Gigabit Ethernet or 8/16/32 Gigabit Fibre Channel |
| Performance: | Switching capacity: 3.82 Tbps ¦ Bandwidth: 320 Gbps ¦ Layer 2 hardware forwarding: 3.82 Tbps ¦ Layer 2 hardware forwarding: 4.2 billion bpps |
- Specifications
- Description
| General | |
| Packaged Quantity: | 2 (specifications are for single item) |
| Device Type: | Switch - 54 ports - Managed |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Subtype: | 100 Gigabit Ethernet |
| Ports: | 36 x 10/25 Gigabit SFP28 + 4 x 1/10/25 Gigabit SFP28 + 6 x 40/100 Gigabit QSFP28 (uplink) + 8 x 10/25 Gigabit Ethernet or 8/16/32 Gigabit Fibre Channel |
| Performance: | Switching capacity: 3.82 Tbps ¦ Bandwidth: 320 Gbps ¦ Layer 2 hardware forwarding: 3.82 Tbps ¦ Layer 2 hardware forwarding: 4.2 billion bpps |
| Capacity: | VLANs supported: 4000 ¦ Queues per port: 16 |
| MAC Address Table Size: | 32000 entries |
| Jumbo Frame Support: | 9216 bytes |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol: | RMON |
| Features: | Data Center Bridging Exchange (DCBX) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LACP support, Fabric Extender Transceiver (FET), FCoE support, Priority-Based Flow Control (PFC), Weighted Round Robin (WRR), 4 fan modules |
| Compliant Standards: | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bg |
| RAM: | 64 GB |
| Expansion / Connectivity | |
| Interfaces: | 36 x 10/25Gbit LAN SFP28 FCOE ¦ 4 x 1/10/25Gbit LAN SFP28 FCOE ¦ 6 x 100Gbit/40Gbit LAN QSFP28 FCOE / uplink ¦ 8 x 10/25Gbit LAN or 8/16/32Gb Fibre Channel SFP28 FCOE / unified port ¦ 1 x 10/100/1000 Base-T RJ-45 management ¦ 1 x USB |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Voltage Required: | AC 120/230 V |
| Miscellaneous | |
| Included Accessories: | 4 x 32Gb Fibre Channel SFP+ transceivers, chassis accessory kit |
| Cables Included: | 4 x 10GBASE-CU SFP+ Cable - 3 m |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, KN 61000-4, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
| Software / System Requirements | |
| Software Included: | UCS Manager v4.0 |
| Dimensions & Weight | |
| Width: | 43.9 cm |
| Depth: | 57.1 cm |
| Height: | 4.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - replacement - 3 years - response time: next business day |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
The Cisco UCS 6454 54-Port Fabric Interconnect is a One-Rack-Unit (1RU) 10/25/40/100 Gigabit Ethernet, FCoE, and Fiber Channel switch offering up to 3.82 Tbps throughput and up to 54 ports. The switch has 28 10/25-Gbps Ethernet ports, 4 1/10/25- Gbps Ethernet ports, 6 40/100-Gbps Ethernet uplink ports, and 16 unified ports that can support 10/25-Gbps Ethernet ports or 8/16/32-Gbps Fiber Channel ports. All Ethernet ports are capable of supporting FCoE.
