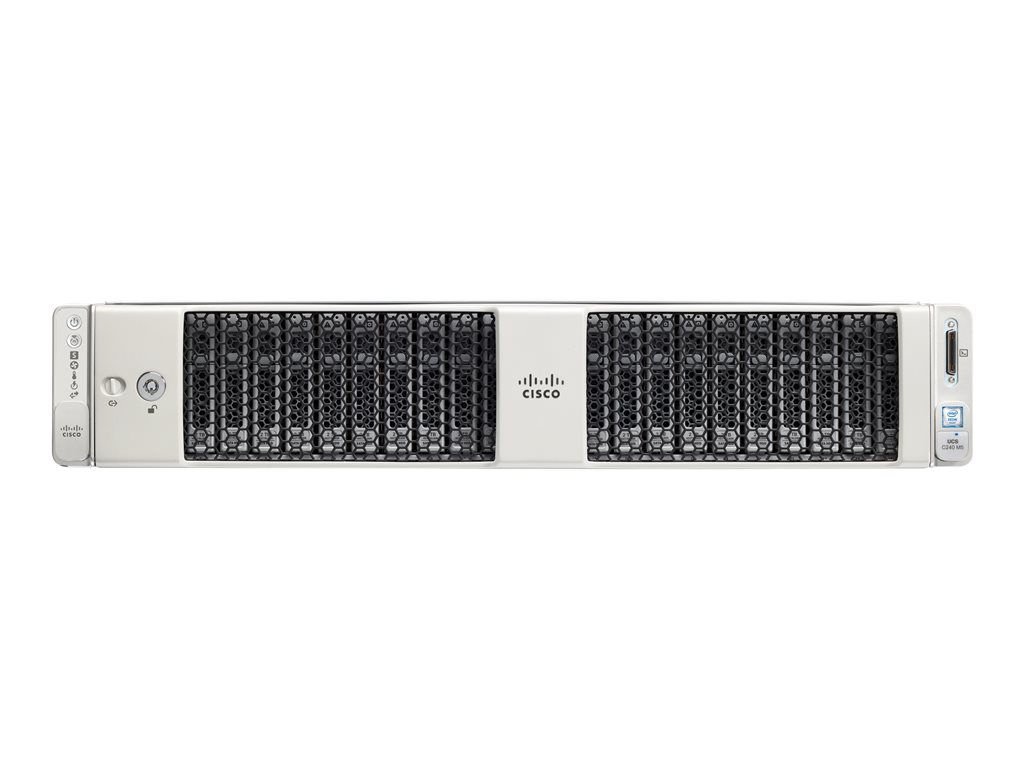

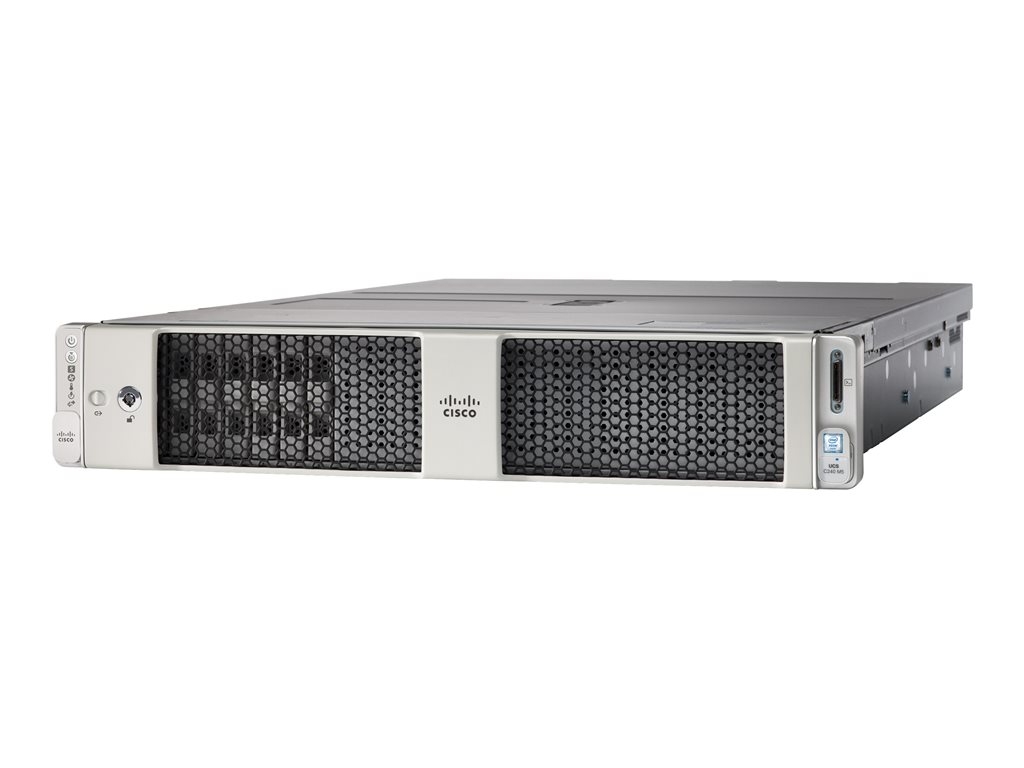

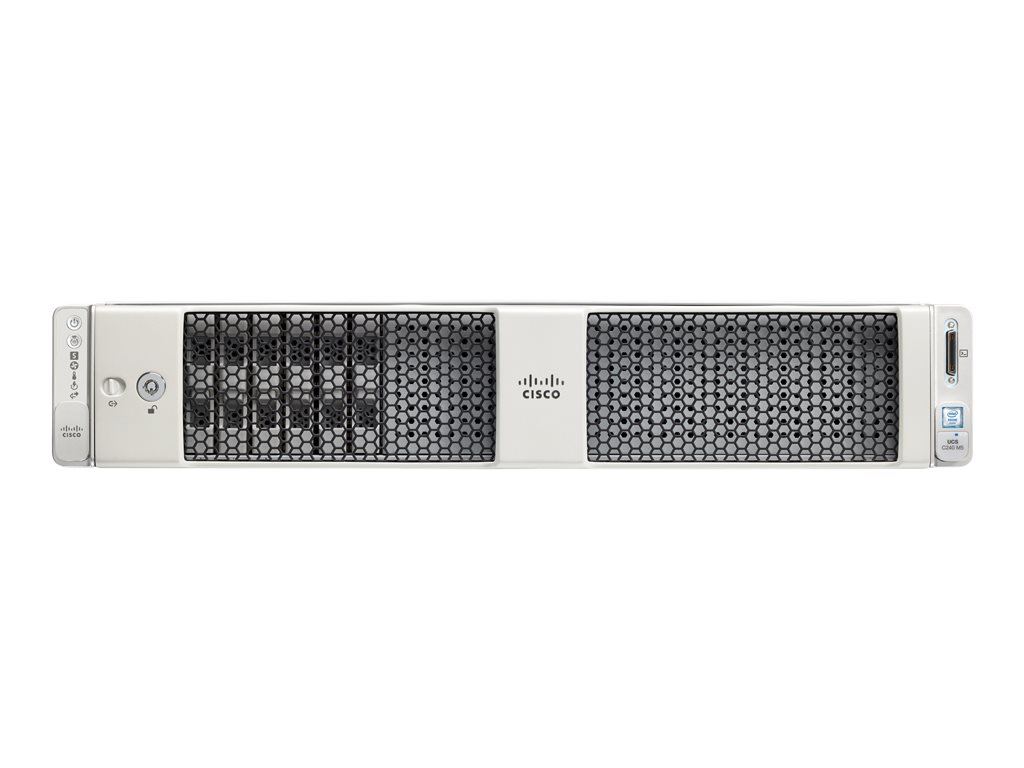

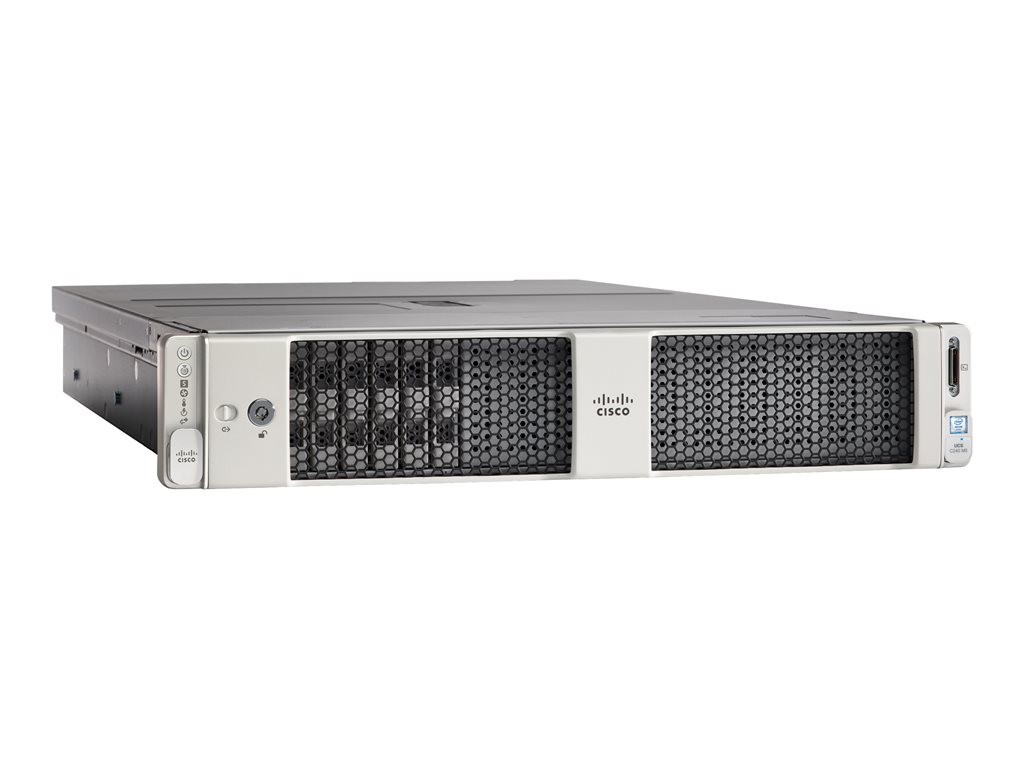

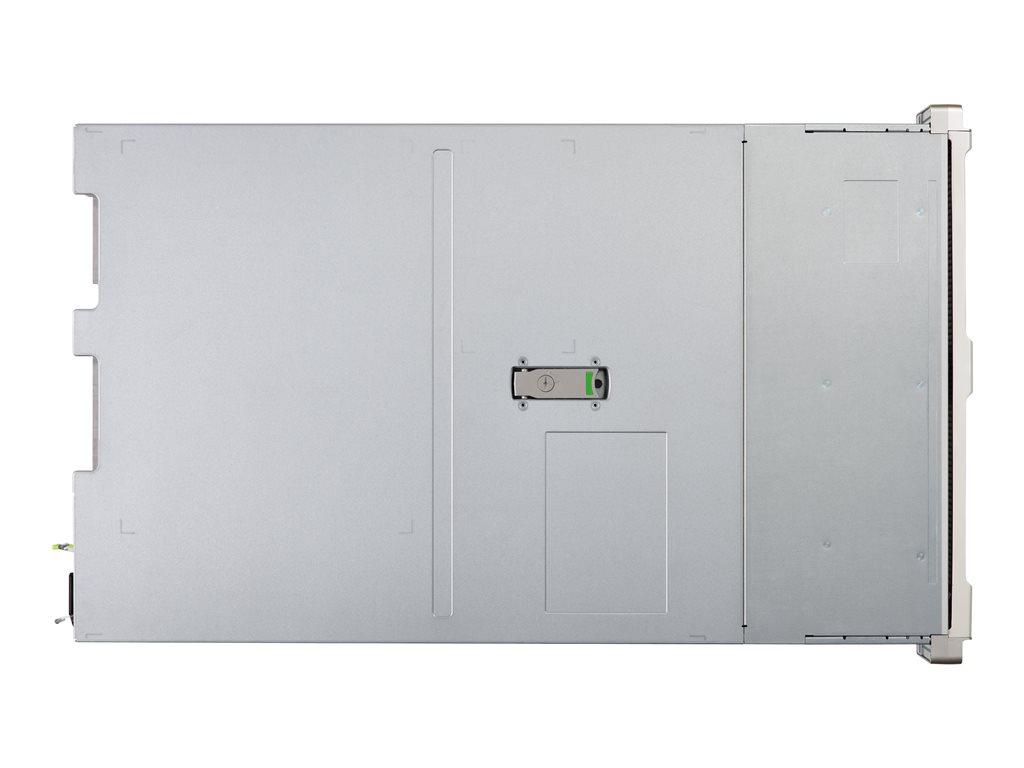

Cisco UCS C240 M5 SFF Rack Server - rack-mountable no CPU - 0 GB - no HDD

SKU UCSC-C240-M5S-RF

Product Description:	Cisco UCS C240 M5 SFF Rack Server - rack-mountable no CPU - 0 GB - no HDD
Type:	Server - rack-mountable
Height (Rack Units):	2U
Server Scalability:	2-way
Processor:	No CPU
RAM:	0 GB DDR4 SDRAM - ECC
Storage Controller:	RAID (SATA 3Gb/s)

11-08-2025

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Rack-mountable - 2U
Built-in Devices:	Backplane
Server Scalability:	2-way
Hot-Swap Bays Qty:	10

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	2
CPU Upgradability:	Upgradable

RAM
Installed Size:	0 GB
Technology:	DDR4 SDRAM - ECC
Form Factor:	DIMM 288-pin
Slots:	24 (Total) / 24 (empty)
Features:	Registered, Load-Reduced DIMM (LRDIMM), through-silicon via DIMMs (TSV DIMMs)

Hard Drive
Type:	No HDD

Storage Controller
Type:	RAID
Controller Interface Type:	SATA 3Gb/s
Channel Qty:	8
RAID Level:	RAID 0, RAID 1, RAID 10

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Networking
Ethernet Controller:	Intel X550
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

Expansion / Connectivity
Bays:	10 (total) / 10 (free) x hot-swap 2.5" SFF
Slots:	2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 6 PCIe 3.0 ¦ 1 (total) / 1 (free) x PCIe ¦ 1 (total) / 1 (free) x mLOM ¦ 2 (total) / 2 (free) x M.2 Card ¦ 5 PCIe x8 ¦ 1 PCIe x16

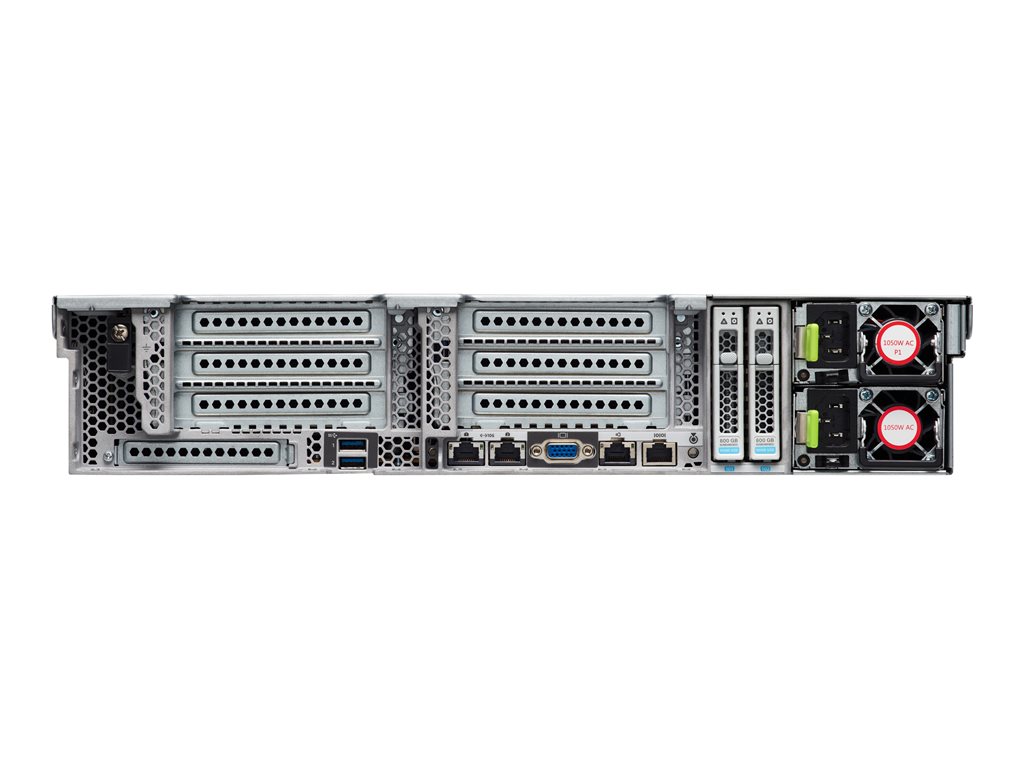

Interfaces:	2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x KVM ¦ 1 x management ¦ 2 x USB 3.0 ¦ 1 x serial - RJ-45

Miscellaneous
Included Accessories:	2 x power supply blanking panel
Compliant Standards:	CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, ACPI 4.0, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, GB4943.1-2001, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN35, Directive 2014/35/EU, Directive 2014/30/EU, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, EN 300386
Pricing Type:	Remanufactured

Power
Device Type:	Power supply - hot-plug
Power Redundancy:	Optional
Installed Qty:	0
Max Supported Qty:	2

Manufacturer Warranty
Service & Support:	Limited warranty - replacement - 3 years - response time: next business day

Dimensions & Weight
Width:	44.8 cm
Depth:	73.8 cm
Height:	8.7 cm

Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	35 °C
Humidity Range Operating:	8 - 90% (non-condensing)

vis mere

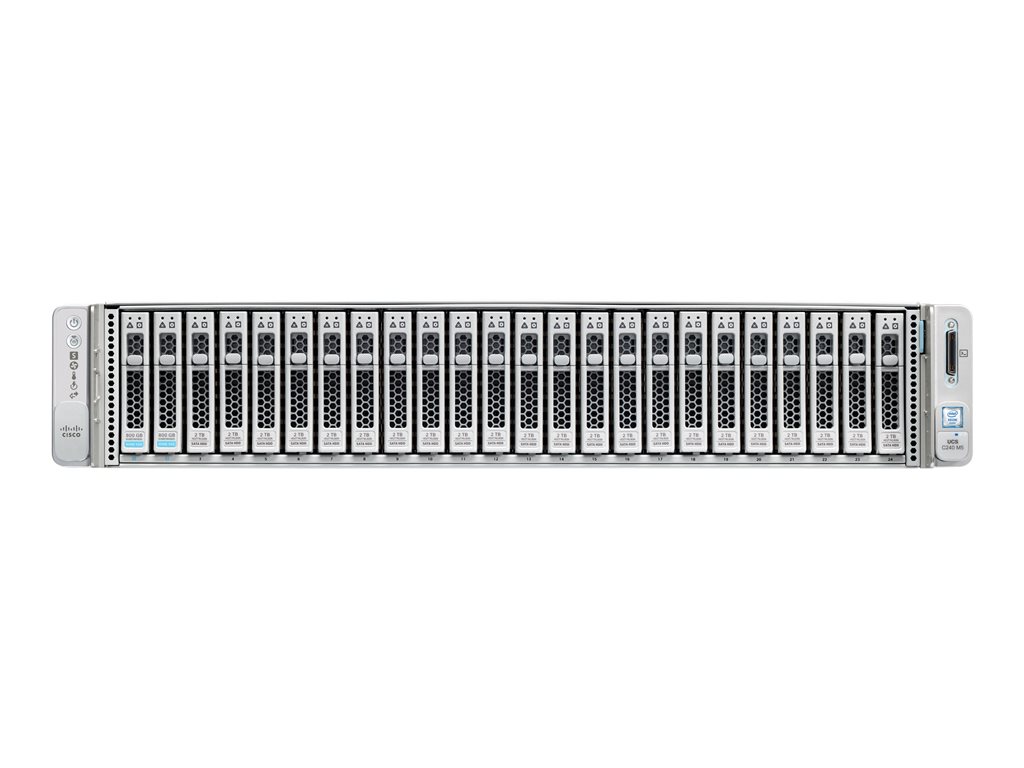

UCS C240 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel Xeon Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and up to 128GB capacity points, up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

2-way server scalability for efficient task handling
Hot-swap storage bays for flexible data management
24 DIMM slots supporting advanced memory technologies
10 Gigabit Ethernet for high-speed network connectivity
Hot-plug power supply for reliable operation

The technical details come from 3rd party. edgemo is not responsible for any errors.
