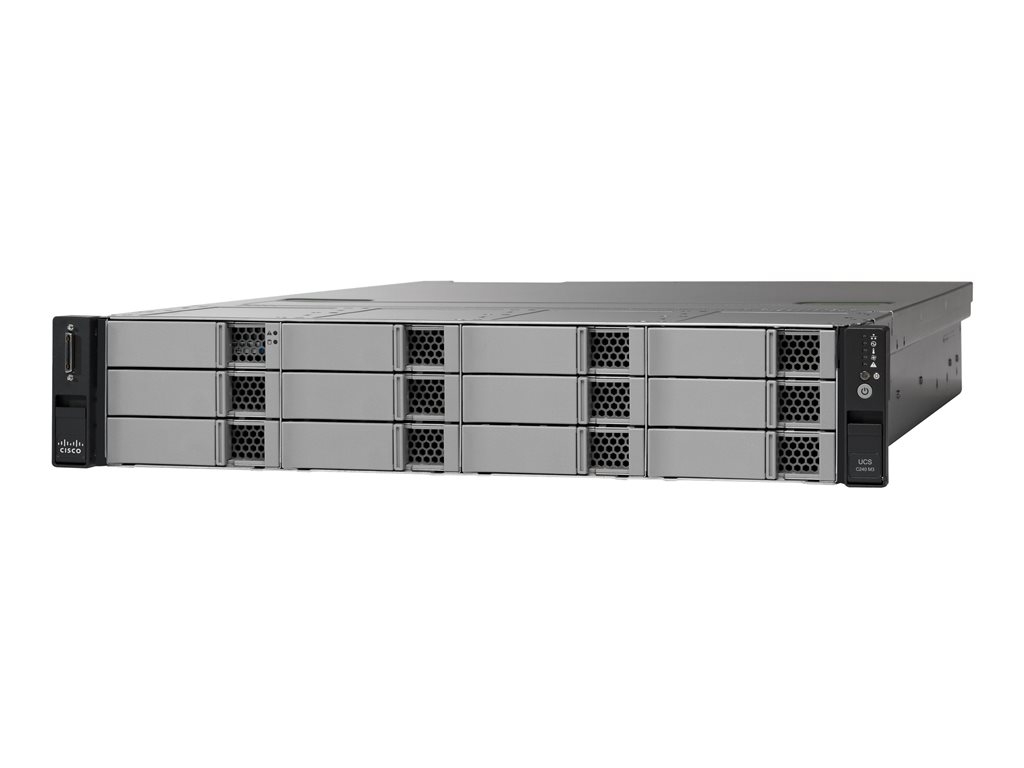

Cisco UCS C240 M3 High-Density Rack Server (Large Form Factor Hard Disk Drive Model) - rack-mountable - no CPU - 0 GB - no HDD

SKU UCSC-C240-M3L-CH2

Product Description:	Cisco UCS C240 M3 High-Density Rack Server (Large Form Factor Hard Disk Drive Model) - rack-mountable - no CPU - 0 GB - no HDD
Type:	Server - rack-mountable
Height (Rack Units):	2U
Server Scalability:	2-way
Processor:	No CPU
Processor Socket:	LGA2011 Socket
RAM:	0 GB (installed) / 768 GB (max) - DDR3 SDRAM - Advanced ECC

13-03-2025

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Rack-mountable - 2U
Server Scalability:	2-way
Hot-Swap Bays Qty:	12

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	2
CPU Upgradability:	Upgradable
CPU Socket:	LGA2011 Socket
Chipset Type:	Intel C600

RAM
Installed Size:	0 GB / 768 GB (max)
Technology:	DDR3 SDRAM - Advanced ECC
Form Factor:	DIMM 240-pin
Slots:	24 (Total) / 24 (empty)
Features:	Unbuffered, registered, Memory Mirroring, low-voltage, Load-Reduced DIMM (LRDIMM)

Hard Drive
Type:	No HDD

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Type:	Integrated
Graphics Processor:	Matrox G200e
Video Memory:	256 MB
Video Interfaces:	VGA

Networking
Ethernet Ports:	4 x Gigabit Ethernet
Ethernet Controller:	Intel I350
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol:	IPMI 2.0, CLI

Expansion / Connectivity
Bays:	12 (total) / 12 (free) x hot-swap 3.5"
Slots:	2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 240-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length
Interfaces:	1 x serial ¦ 2 x USB 2.0 ¦ 1 x management (NIC) ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x KVM

Miscellaneous
Included Accessories:	Rack rail kit
Compliant Standards:	CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943, EN 300 386
Pricing Type:	DISTI

Power
Device Type:	Power supply
Power Redundancy:	Optional
Power Redundancy Scheme:	1+1 (with optional power supply)
Installed Qty:	0
Max Supported Qty:	2

Manufacturer Warranty
Service & Support:	Limited warranty - replacement - 3 years - response time: next business day

Dimensions & Weight
Width:	44.55 cm
Depth:	74.4 cm
Height:	8.7 cm

Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	40 °C
Humidity Range Operating:	10 - 90% (non-condensing)

vis mere

The Cisco UCS C240 M3 Rack Server is designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads ranging from big data to collaboration.
Building on the success of the Cisco UCS C210 M2 Rack Server, the enterprise-class Cisco UCS C240 M3 further extends the capabilities of the Cisco Unified Computing System portfolio in a 2-rack-unit (2 RU) form factor.

Suitable for nearly all storage-intensive, 2-socket applications
Unique Cisco UCS P81E virtual interface card
Exceptional building block and entry point for the Cisco Unified Computing System
Continual innovations from Cisco in server technology and at all levels of the Cisco Unified Computing System
