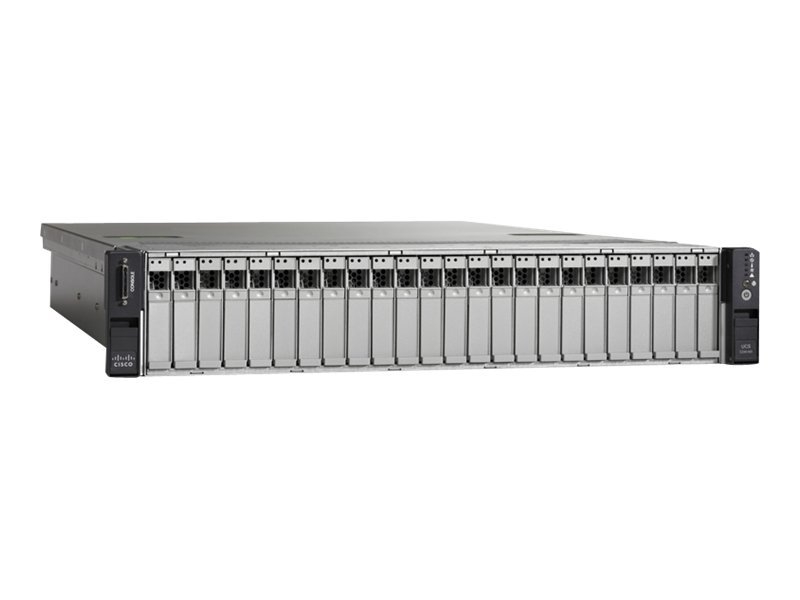

Cisco UCS C240 M3 High-Density Rack-Mount Server Small Form Factor - rack-mountable - no CPU - 0 GB - no HDD

SKU UCSC-C240-M3S2-CH2

Product Description:	Cisco UCS C240 M3 High-Density Rack-Mount Server Small Form Factor - rack-mountable - no CPU - 0 GB - no HDD
Type:	Server - rack-mountable
Height (Rack Units):	2U
Server Scalability:	2-way
Processor:	No CPU
Processor Socket:	LGA2011 Socket
RAM:	0 GB (installed) / 384 GB (max) - DDR3 SDRAM - Advanced ECC

Not in stock

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Rack-mountable - 2U
Server Scalability:	2-way
Hot-Swap Bays Qty:	16

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	2
CPU Upgradability:	Upgradable
CPU Socket:	LGA2011 Socket
Chipset Type:	Intel C600

RAM
Installed Size:	0 GB / 384 GB (max)
Technology:	DDR3 SDRAM - Advanced ECC
Form Factor:	DIMM 240-pin
Slots:	24 (Total) / 24 (empty)
Features:	Registered, Memory Mirroring, low-voltage

Hard Drive
Type:	No HDD

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Type:	Integrated
Graphics Processor:	Matrox G200e
Video Memory:	256 MB
Video Interfaces:	VGA

Networking
Ethernet Ports:	4 x Gigabit Ethernet
Ethernet Controller:	Intel I350
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol:	IPMI 2.0, CLI

Expansion / Connectivity
Bays:	16 (total) / 16 (free) x hot-swap 2.5"
Slots:	2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 240-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x24 - three-quarter-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, low-profile (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x8 mode)
Interfaces:	1 x serial ¦ 2 x USB 2.0 ¦ 1 x management (NIC) ¦ 1 x VGA ¦ 8 x LAN (Gigabit Ethernet) ¦ 1 x KVM

Miscellaneous
Included Accessories:	Rack rail kit
Compliant Standards:	CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943, EN 300 386
Pricing Type:	DISTI

Power
Device Type:	Power supply
Power Redundancy:	Optional
Installed Qty:	0
Max Supported Qty:	2
Voltage Required:	AC 120/230 V (50/60 Hz)

Manufacturer Warranty
Service & Support:	Limited warranty - replacement - 3 years - response time: next business day

Dimensions & Weight
Width:	44.55 cm
Depth:	71.23 cm
Height:	8.7 cm
Weight:	14.6 kg

Environmental Parameters
Min Operating Temperature:	5 °C
Max Operating Temperature:	40 °C
Humidity Range Operating:	10 - 90% (non-condensing)

vis mere

The UCS C240 M3 rack-mount server is designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from big data to collaboration.
Building on the success of the Cisco UCS C210 M2 rack-mount server, the enterprise-class UCS C240 M3 server further extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor. In addition, the UCS C240 M3 server provides 24 DIMM slots, 24 drives and 4 x 1 GbE LOM to provide outstanding levels of internal memory and storage expandability along with exceptional performance.

The technical details come from 3rd party. edgemo is not responsible for any errors.
