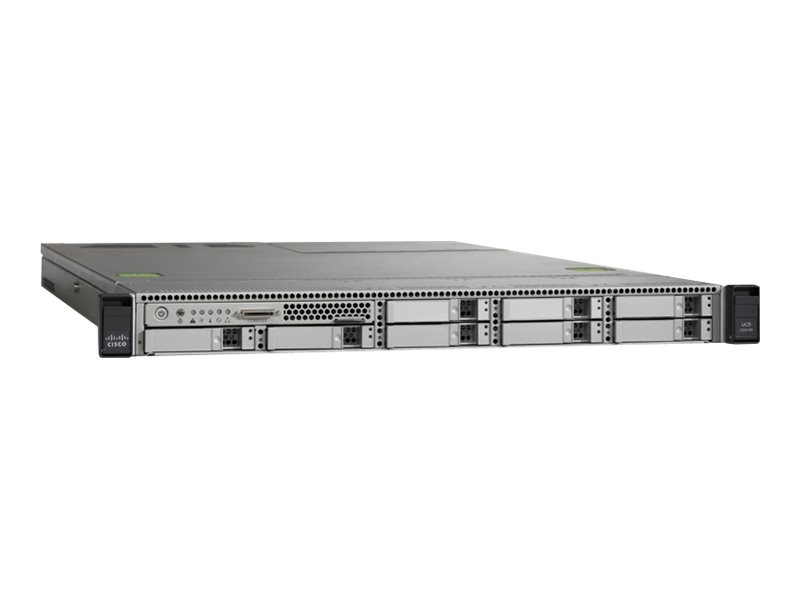

Cisco UCS C220 M3 High-Density Rack Server Large Form Factor Hard Disk Drive - rack-mountable no CPU - 0 GB - no HDD
SKU UCSC-C220-M3L-CH2
Product Description: | Cisco UCS C220 M3 High-Density Rack Server Large Form Factor Hard Disk Drive - rack-mountable no CPU - 0 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Server Scalability: | 2-way |
Processor: | No CPU |
Processor Socket: | LGA2011 Socket |
RAM: | 0 GB DDR3 SDRAM - ECC |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Server Scalability: | 2-way |
Hot-Swap Bays Qty: | 4 |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | LGA2011 Socket |
Chipset Type: | Intel C600 |
RAM | |
Installed Size: | 0 GB |
Technology: | DDR3 SDRAM - ECC |
Features: | Registered, Memory Mirroring, low-voltage |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | RAID - integrated |
Controller Interface Type: | SATA 3Gb/s |
Channel Qty: | 4 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Type: | Integrated |
Graphics Processor: | Matrox G200e |
Video Memory: | 256 MB |
Video Interfaces: | VGA |
Networking | |
Ethernet Ports: | 2 x Gigabit Ethernet |
Ethernet Controller: | Intel I350 |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0, CLI |
Expansion / Connectivity | |
Bays: | 8 (total) / 8 (free) x hot-swap 3.5" |
Slots: | 2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x memory ¦ 1 (total) / 1 (free) x PCIe 2.0 x8 - half-length ¦ 1 (total) / 1 (free) x PCIe 2.0 x16 - half-length, full-height |
Interfaces: | 1 x serial ¦ 2 x USB 2.0 ¦ 1 x management ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x KVM |
Miscellaneous | |
Included Accessories: | Rack rail kit |
Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943, EN 300 386 |
Pricing Type: | DISTI |
Power | |
Device Type: | Power supply |
Installed Qty: | 0 |
Max Supported Qty: | 2 |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Manufacturer Warranty | |
Service & Support: | Limited warranty - replacement - 3 years - response time: next business day |
Dimensions & Weight | |
Width: | 43 cm |
Depth: | 72.4 cm |
Height: | 4.3 cm |
Weight: | 10 kg |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
The Cisco Unified Computing System (Cisco UCS) combines Cisco UCS C-Series Rack Server simplifies management and delivers greater cost efficiency and agility with increased visibility and control. This server increases compute density through more cores and cache balanced with more memory capacity, disk drives and with faster I/O. The Cisco UCS C220 M3 Rack Server is designed for performance and density over a wide range of business workloads, from web serving to distributed databases.
- Wire-once deployment model in which changing I/O configurations no longer means installing adapters and recabling racks and switches
- Fewer interface cards, cables, and upstream network ports to purchase, power, configure, and maintain
- Consistent and scalable operational model
- Increased security and efficiency with reduced complexity
- Capability to move virtual machine security features and policies from rack to rack or rack to blades
- Entire solution managed as a single entity with Cisco UCS manager, improving operational efficiency and flexibility
- Service profiles and templates that implement role- and policy-based management, enabling more effective use of skilled server, network, and storage administrators
- Dual-redundant fans and hot-swappable, redundant power supplies for enterprise-class reliability and uptime
- Outstanding network I/O performance and increased network efficiency and flexibility
- Increased network availability when configured in failover configurations
